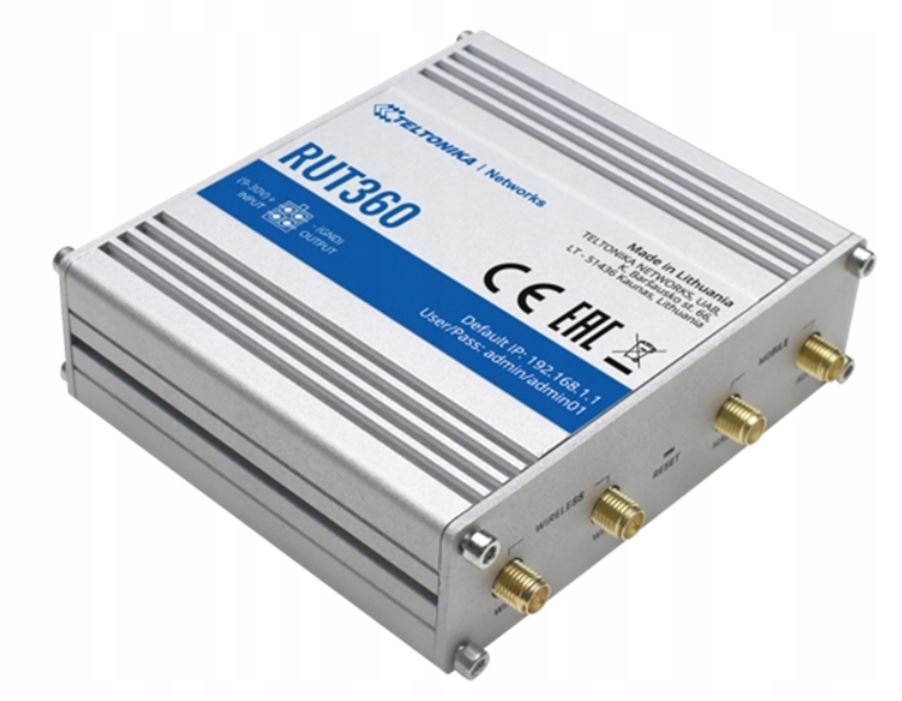

TELTONIKA RUT360 Kompaktowy

Przemysłowy ROUTER 4G

LTE CAT 6

Nowsza wersja bestsellerowego RUT240 z Modemem LTE Kategorii 6 (do 300 Mb/s), 2x WAN, FAILOVER

RUT360 to zaktualizowana wersja naszego bestsellerowego RUT240. Ten kompaktowy przemysłowy router oferuje możliwość połączenia z Internetem za pomocą sieci komórkowej kategorii 6 (do 300Mb/s), Wi-Fi i przewodowej.

Ponieważ routery Teltonika cieszą się ogromną popularnością wśród naszych Klientów i często zadajecie Państwo różne pytania - nagraliśmy film, w którym odpowiadamy na najczęściej zadawane pytania. Film docenił nawet sam producent!

https://www.youtube.com/watch?v=3eAoN-HaRm0&t=3s

O PRODUKCIE:

• 4G LTE CAT 6: Szybkość sieci komórkowej do 300 Mb / s dzięki agregacji operatorów
• WIFI: 802.11 b/g/n WiFi
• KOMPAKTOWOŚĆ: niewielki rozmiar - łatwa integracja w dowolnym miejscu
• TRWAŁOŚĆ: Solidna aluminiowa obudowa
• BEZPIECZEŃSTWO: Zaawansowany Firewall, VPN Serwer oraz Client, wbudowany OpenVPN, IPsec, PPTP, L2TP & SSTP
• RMS: Kompatybilny z systemem zdalnego sterowania Teltonika Networks.

PAKIET ZAWIERA:

• Router RUT360
• 18 W Euro PSU (Zasilacz)
• 2 x LTE Antena (swivel, SMA male)
• 2 x WiFi Antena (swivel, RP-SMA male)
• Kabel Ethernet (1.5 m)
• Skrócona Instrukcja Obsługi QSG (Quick Start Guide)
• RMS Flyer
• Opakowanie (pudełko)

RUT360 jest wyposażony w dwa interfejsy Ethernet, Wi-Fi 802.11 b/g/n oraz moduł komórkowy 4G LTE Cat 6, oferujący prędkości danych do 300Mb/s.

Unikalne oprogramowanie, zdalne monitorowanie i funkcje bezpieczeństwa sprawiają, że RUT360 jest idealny do aplikacji IoT i M2M, gdzie bezpieczna i niezawodna łączność jest koniecznością. Funkcjonalność agregacji nośnych sprawia, że to kompaktowe urządzenie jest niezastąpione w obszarach lub zastosowaniach, w których prędkości transmisji danych komórkowych są ograniczone.

Specyfikacja Techniczna:

MOBILE

• Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
• Status: Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply
• USSD: Supports sending and reading Unstructured Supplementary Service Data messages
• Black/Whiles list (planned): Operator black/white list
• Multiple PDN: Possibility to use different PDNs for multiple network access and services
• Band management: Band lock, Used band status display
• APN: Auto APN
• Bridge mode: Direct connection (bridge) between mobile ISP and device on LAN

WIRELESS

• Wireless mode: 802.11 b/g/n, 2x2 MIMO, Access Point (AP), Station (STA)
• WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
• ESSID: ESSID stealth mode
• Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS OTP, MAC auth, built in customizable landing page, walled garden

ETHERNET

• WAN: 1 x WAN port (can be configured as LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
• LAN: 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover

NETWORK

• Routing: Static routes, Dynamic routes (planned)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP (planned), SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP (planned), MQTT (planned), Wake on LAN (WOL) (planned)
• VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall: Port forwards, traffic rules, NAT rules, custom rules
• DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd
• QoS / Smart Queue Management (SQM) (planned): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS (planned): Supported >25 service providers, others can be configured manually
• Network backup: Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover
• Load balancing: Balance Internet traffic over multiple WAN connections
• SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW)

SECURITY

• Authetication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Tag based VLAN separation
• Mobile quota control: Custom data limits for both SIM cards
• WEB filter (planned): Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods
• OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
• IPSec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
• GRE: GRE tunnel
• PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3 support (planned)
• Stunnel (planned): Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN (planned): Method of building scalable IPsec VPNs
• SSTP (planned): SSTP client instance support
• ZeroTier: ZeroTier VPN client support
• WireGuard: WireGuard VPN client and server support

MODBUS

MODBUS TCP SLAVE (PLANNED)

• ID filtering: Respond to one ID in range [1;255] or any
• Allow remote access: Allow access through WAN
• Custom registers: Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality

MODBUS TCP MASTER (PLANNED)

• Supported functions: Supported data formats
• 01, 02, 03, 04, 05, 06, 15, 16: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

MQTT GATEWAY (PLANNED)

• Gateway: Allows sending commands and receiving data from Modbus Master trough MQTT broker

DATA TO SERVER (PLANNED)

• Protocols: HTTP(S), MQTT, Azure MQTT, Kinesis

MONITORING & MANAGEMENT

• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
• FOTA: Firmware update from server, automatic notification
• SSH: SSH (v1, v2)
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• Call: Reboot, Status, Mobile data on/off, Output on/off
• MQTT (planned): MQTT Broker, MQTT publisher
• SNMP (planned): SNMP (v1, v2, v3), SNMP trap
• JSON-RPC: Management API over HTTP/HTTPS
• Modbus (planned): Modbus TCP status/control
• RMS: Teltonika Remote Management System (RMS)

IoT PLATFORMS

• Clouds of things: Allows monitoring of: Device data, Mobile data, Network info, Availability
• ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
• Azure IoT Hub: Can send device IP, Number of bytes send/received, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server

SYSTEM CHARACTERISTICS

• CPU: QCA9531, MIPS 24kc, 650 MHz
• RAM: 128 MB, DDR2
• FLASH storage: 16 MB, SPI Flash (optional up to 256 MB)

FIRMWARE / CONFIGURATION

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA: Update FW/configuration from server
• RMS: Update FW/configuration for multiple devices at once
• Keep settings: Update FW without losing current configuration

INPUT/OUTPUT

• Configurable I/O: 2 x Configurable digital Inputs/Outputs. Digital input 0 - 6 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA
• Events: SMS, Email, RMS

POWER

• Connector: 4 pin industrial DC power socket
• Input voltage range: 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
• Power consumption: 10.5 W max

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)

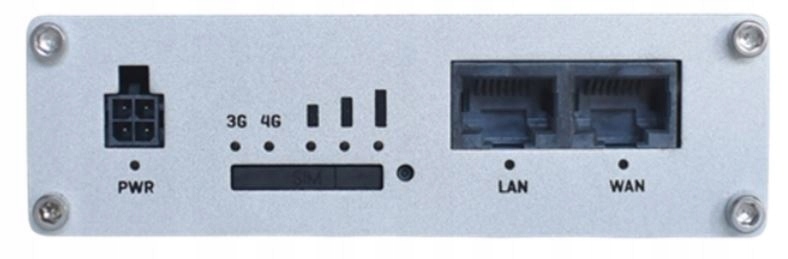

• Ethernet: 2 x RJ45 ports, 10/100 Mbps
• I/Os: 2 x Configurable digital Inputs/Outputs on 4 pin power connector
• Status LEDs: 2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power
• SIM: 1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders

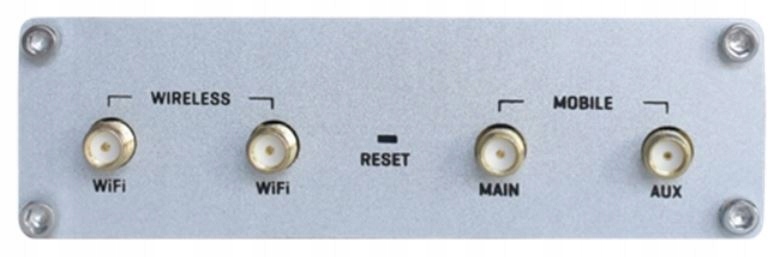

• Antenna: 2 x SMA for LTE, 2 x RP-SMA for WiFi
• Power: 1 x 4 pin DC connector
• Reset: Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATION

• Casing material: Aluminium housing with DIN rail mounting option
• Dimensions (W x H x D): 100 x 30 x 85 mm
• Weight: 247 g
• Mounting options: DIN rail, flat surface placement

OPERATING ENVIRONMENT

• Operating temperature: -40 C to 75 C
• Operating humidity: 10 % to 90 % non-condensing
