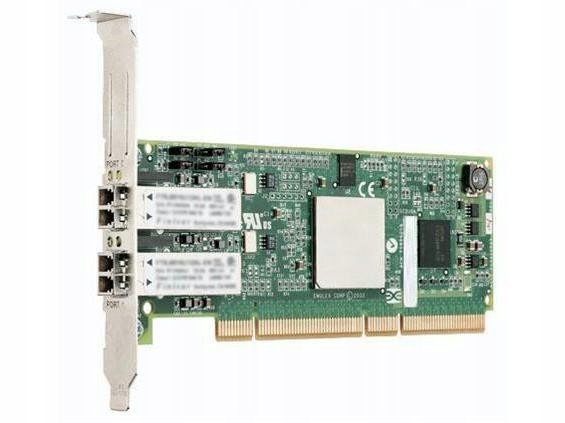

FC 2x2GB Emulex LightPulse LP10000DC PCI-X

KARTA FIBRE CHANNEL 2 X 2gb!

EMULEX LP10000DC PCI-X STANDARDS

• ANSI Fibre Channel: FC-FS, FC-PH, FC-PI, FCP, FCP-2, FC-AL, FC-PLDA, FC-MI, FC-FLA, IETF IP over FC PCI-X 1.0a and PCI 2.3
• Fibre Channel Class 2 and 3
• PHP hot plug—hot swap

ARCHITECTURE

• Emulex LightPulse® technology
• 2Gb/s or 1Gb/s FC Link
• Quad Data Rate (QDR) SRAM Unified Data Buffer and Code Space memory

DRIVER SUPPORT

• Windows Server 2003
• Windows 2000
• Windows NT
• Linux
• NetWare
• Solaris
• HP-UX
• OEM custom drivers

HARDWARE ENVIRONMENTS

• x86 and Intel® Itanium® processor family
• SPARC and PowerPC PCI hardware platforms
• 3.3V signaling, 5V tolerant
• 32/64-bit 33/66MHz PCI
• 66/100/133MHz PCI-X

OPTICAL

• data rates: 1.0625/2.125Gb/s (auto–detected)
• optics: short wave lasers with LC type connector
• cable: 50/125μm, up to 300 meters at 2Gb/s, 62.5/125μm, up to 150 meters at 2Gb/s
• “smart” digital diagnostics interface supported

PHYSICAL DIMENSIONS

• short low profile MD2 form factor card
• 167.64mm x 64.42mm (6.60” x 2.54”)
• standard bracket (low profile available)

POWER & ENVIRONMENTAL REQUIREMENTS

• volts: +3.3 and +5 VDC
• power @ 66MHz (typical/max): 9.1/12.9 watts
• power @ 100/133MHz (typical/max): 10.1/14.4 watts
• operating temperature: 0° to 45°C (32° to 113°F)
• airflow required: 100 lf/m
• storage temperature: -40° to 70°C (-40° to 158°F)
• relative humidity: 5% to 95% non–condensing

AGENCY APPROVALS

• Class 1 Laser Product per DHHS 21CFR (J) & EN60825
• UL recognized to UL 1950
• CUR recognized to CSA22.2, No. 950
• TUV certified to EN60950
• FCC rules, Part 15, Class A
• ICES–003, Class A
• EMC Directive 89/336/EEC (CE Mark)
• EN55022, Class A
• EN55024
• Australian EMC Framework (C–Tick Mark)
• AS/NZS 3548, Class A
• VCCI, Class A
• MIC (Korea), Class A
• BSMI (Taiwan), Class A
