Rail-Mount SX1262 LoRa Data Transfer Unit, RS232/RS485/RS422 To LoRa, Suitable For Sub-GHz Band

Kod producenta: SKU: 23797 SX1262-LoRa-DTU-LF-Kit (EU)

Dodatkowe szczegółowe informacje na stronie : https://www.waveshare.com/wiki/SX1262-LoRa-DTU-xF

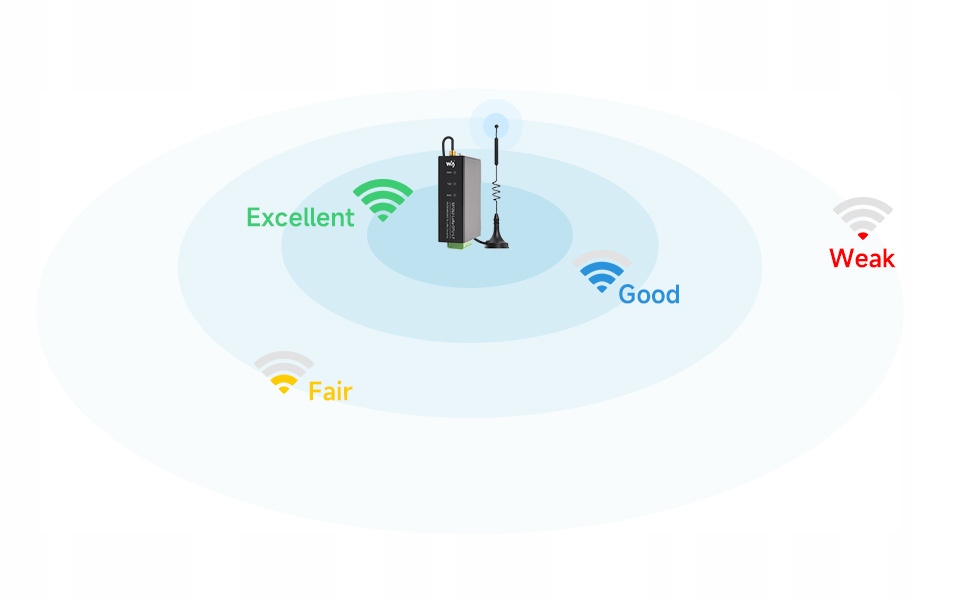

SX1262-LoRa-DTU is a wireless data transfer unit with RS232, RS485 and RS422 interfaces based on the SX1262 module. Adopts LoRa Modulate and Demodulate technology, with the advantages of anti-interference and long-distance communication (up to 5KM). Supports point-to-point, point-to-multipoints, relay network, AES, etc. Compact size and easy to install, suitable for the wireless data transmission and device control of industrial standard or non-standard user protocol

• Adopts LoRa Modulate and Demodulate technology, anti-interference and long-distance communication
• Adopts the original SX1262 chip, with -148dBm reception sensitivity and 22dBm emitt power
• Supports preamble detection, with CRC, automatic packetization, 960 bytes cache functions
• Supports LBT sending, RSSI output, AT command configuration
• AES communication to ensure data transmission security
• Supports multi-level relay networking to increase the wireless communication distance

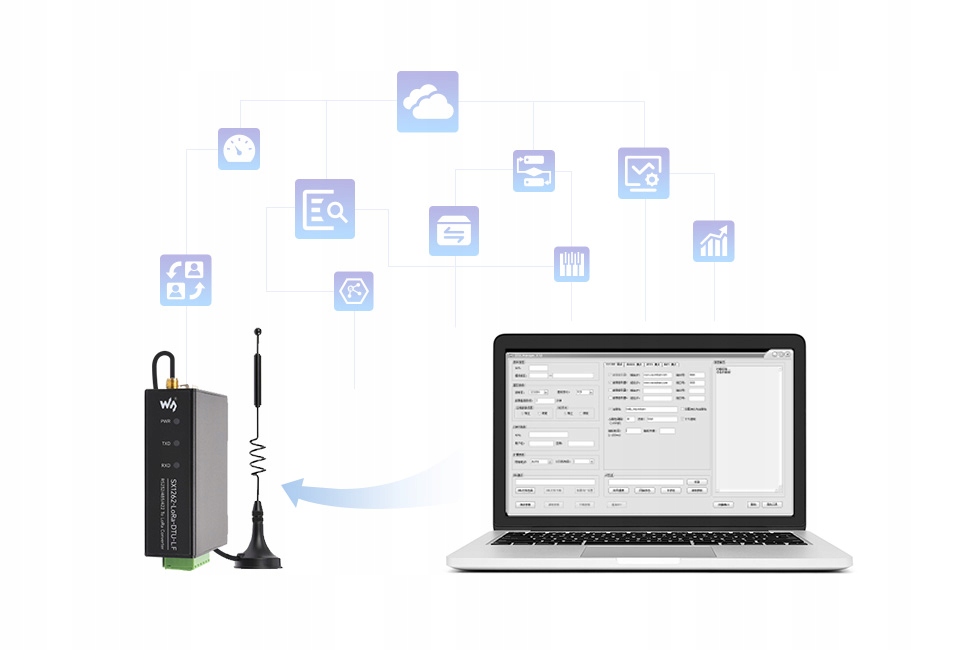

• Supports host configuration and firmware upgrade (support firmware customization for batch order)
• Adopts high-quality components such as TCXO to ensure stable operation under harsh working conditions
• Comes with development resources and manual

Primary Function

Support RS232 / RS485 / RS422 To LoRa

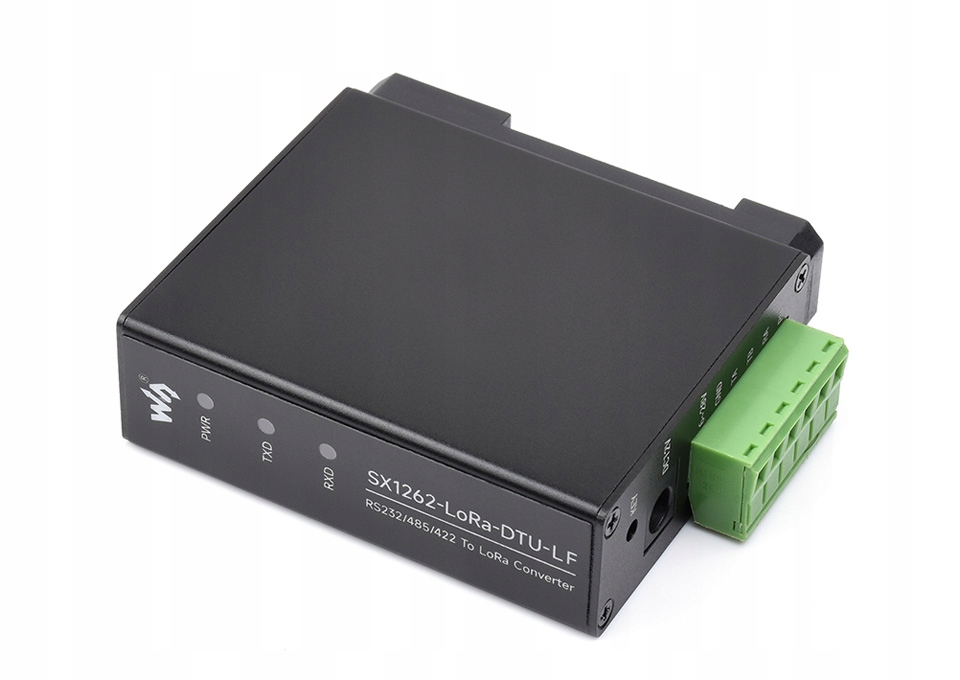

Rail-Mount LoRa Data Transfer Unit

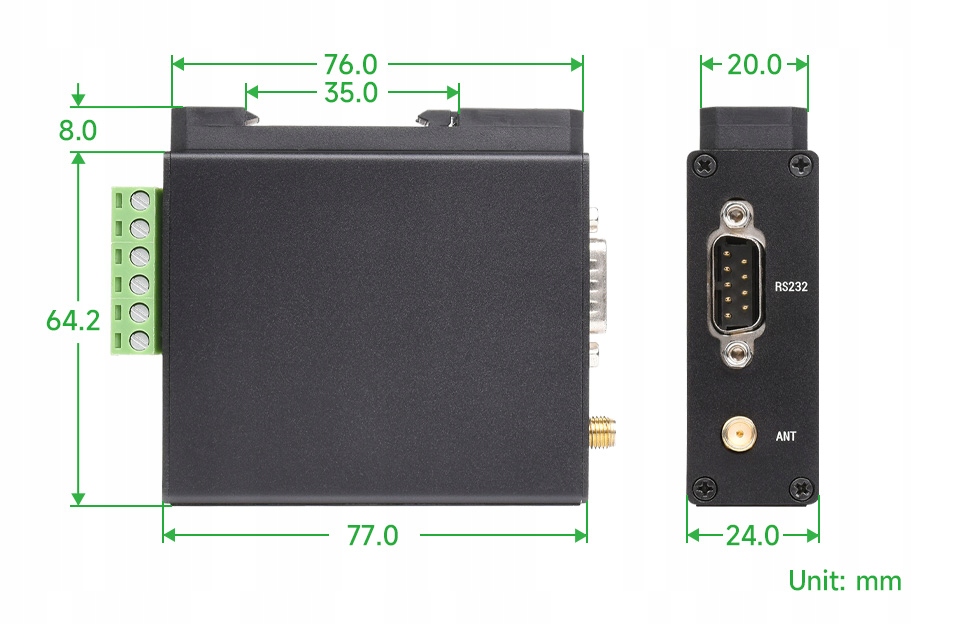

Industrial Rail-Mount Design, Small In Size, Easy To Install, And Cost-Effective

Multiple Protection, Safe And Stable

Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock resistance

Aluminium Alloy Enclosure

Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation

Solid And Durable, Fashion And Good Hand Feeling

W zestawie:

1. SX1262-LoRa-DTU-LF pasmo 410~510MHz
2. Magnetic antenna 410~510MHz x1
3. Female to female serial cable ~1.5m x1
4. 12V 1A power supply x1

W zależności od wersji na jaką częstotliwość jest moduł, antena w zestawie może różnić się od widocznej na zdjęciu

• Ten produkt nie obsługuje LoRaWAN.
• Ten produkt nie obsługuje komunikacji z innymi produktami LoRa.
• Do utworzenia sieci komunikacyjnej LoRa wymagane są co najmniej 2 moduły SX1262-LoRa-DTU
