No ARGB NF-1 RAM Memory Module Cooling Radiator DDR4 DDR5 Ram Cooler 4P Fan

NF-1 RAM Memory Module Cooling Radiator DDR4 DDR5 Ram Cooler 4Pin PWM 5V 3PIN ARGB Sync Dual 50mm Fan MemoryChip Heatsink

Memory-Chip Heatsink 4Pin PWM/5V 3Pin ARGB SYNCRAM Air AIO Fan Cooler with Dual 50mm Fan PC Memory Cooling Radiator 60-3600RPM for DDR2 DDR3 DDR4 DDR5 Cooling

Feature:1. Efficient Cooling Performance: The ram cooler by Qiaosibo is designed to tackle the issue of high temperatures that often accompany DDR5 memory overclocking. With its active cooling vest design, it significantly improves memory cooling efficiency, enabling higher frequencies and more stable operation.

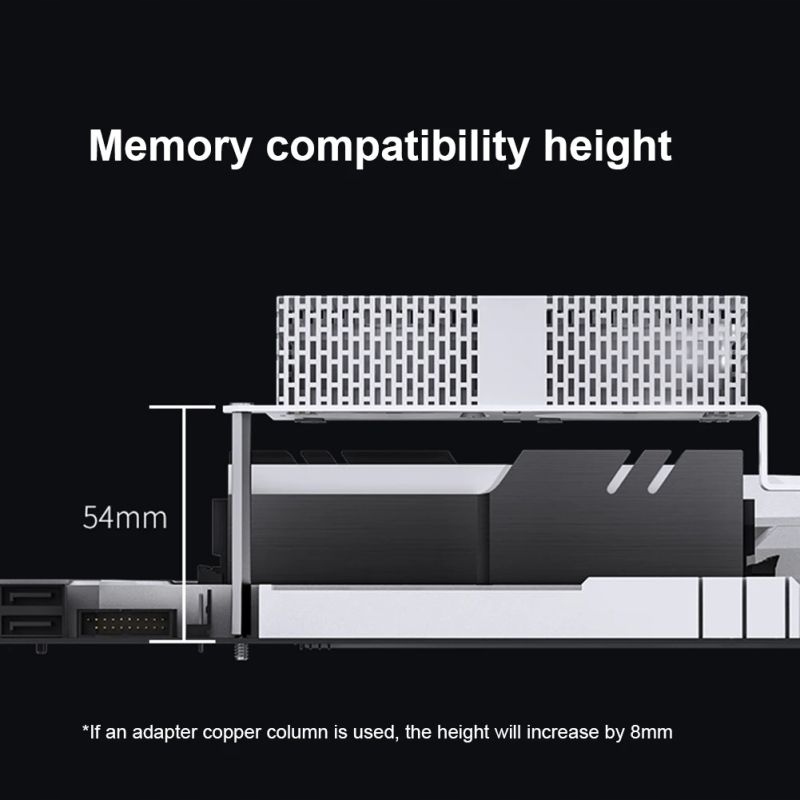

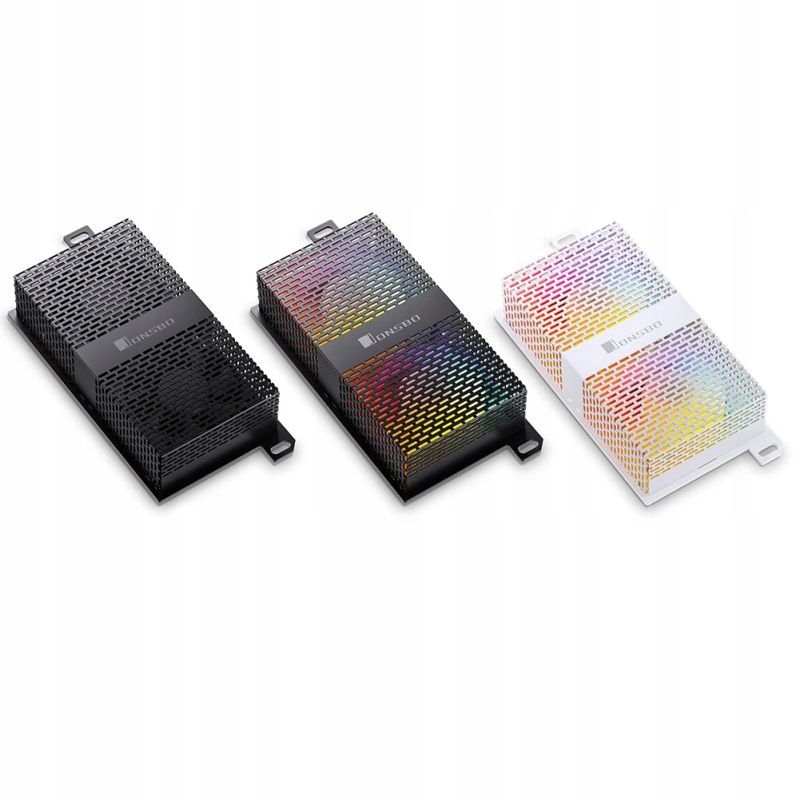

2. Sleek and Versatile Design: Measuring 120mm x 62mm x 28.1mm, the ram cooling fan comes in two color options: black and white. The black version is available in both standard and ARGB variants, while the white version only comes in ARGB. Its rectangular shape with ample cutouts allows compatibility with memories up to 54mm in height or an additional 8mm when using adapter copper pillars.

3. Active Cooling System:

Equipped with two 50mm x 50mm x 20mm fans featuring hydraulic bearings, the ram memory cooler offers a 4-pin PWM/3-pin ARGB interface. The fan operates at a speed range of 600-3600 RPM+/-10%, ensuring quiet stability with a maximum noise level of 22.4 dB(A). The fans efficiently dissipate heat, contributing to a comfortable and silent environment for your system. Recommended for use with ATX motherboards in combination with liquid cooling.

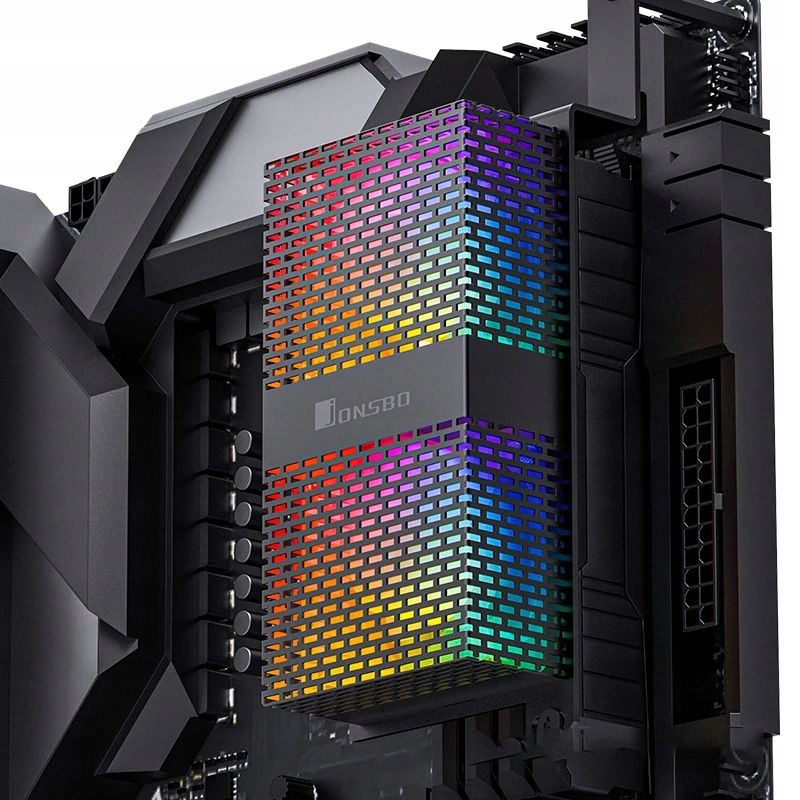

4. ARGB Synchronization Lighting Effects:

The ram radiator come with ARGB lighting effects that can be synchronized and controlled using major motherboard manufacturers' ARGB software. Enjoy a vibrant experience with up to 16.8 million programmable colors. Connect to for ASUS, MSI, Gigabyte, ASRock, and other motherboards with addressable 5V 3-pin ARGB interfaces to achieve software-controlled lighting synchronization and create custom lighting effects (ARGB version only).

5. Easy Installation and Usage:

The memory-chip heatsink features a simple screw-in installation process, making it convenient for both initial setup and future maintenance. Players can the motherboard's fixed screws with the provided fixing screws, securing them into the corresponding motherboard holes. Then, fasten the cooler onto the fixed screws. The screws and female pillars on both sides allow for direct installation above the memory. However, compatibility is limited to a maximum height of 54mm.

Specification:Origin: Mainland China

Model Number: NF-1

Type: Memory Cooler

Material: Aluminum

RGB Support: A-RGB

Power Interface: 4PIN,5v-3pin ARGB

Product color: black, white (optional)

Fan speed: 600 -3600RPM(+/-10%)

Fan air volume: (1.30-9.11)X2CFM(MAX)

Fan pressure: 0.17-1.6mmH2O(MAX)

Fan noise: 22.4dB(A)(MAX)

Fan bearings: hydraulic bearings

Lifespan: ≥20000h @25℃

Port: FAN 4Pin PWM/LED 3Pin ARGB

Rated voltage: Fan 12V, LED 5V

Rated current: Fan 0.06A, LED 0.24A

Power Consumption: Fan 0.72W(MAX), LED 1.2W

Fan size: 50mmX 50mmX 20mm

Radiator size: 120mmX 62mmX28.1mm/4.72x2.44x1.1inch

Product weight: 220 grams

Installation sequence:1. The fixing screw replaces the main board fixing screw and is screwed into the corresponding main board fixing hole

2. Screw the fixing screw into the fixing screw and fix it

X If the copper pillar of the chassis itself is an M3 inner bud, it needs to be screwed into the fixing screw with the adapter copper pillar first, and then screwed into the copper pillar hole of the motherboard

Note:Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

1 xRAM Cooler

4PIN5v-3pin ARGB:Power Interface

A-RGB:RGB Support

aluminum:Material

180.00 g:Weight

Memory Cooler:Type

NF-1 RAM Cooler:Model Number

Mainland China:Origin
