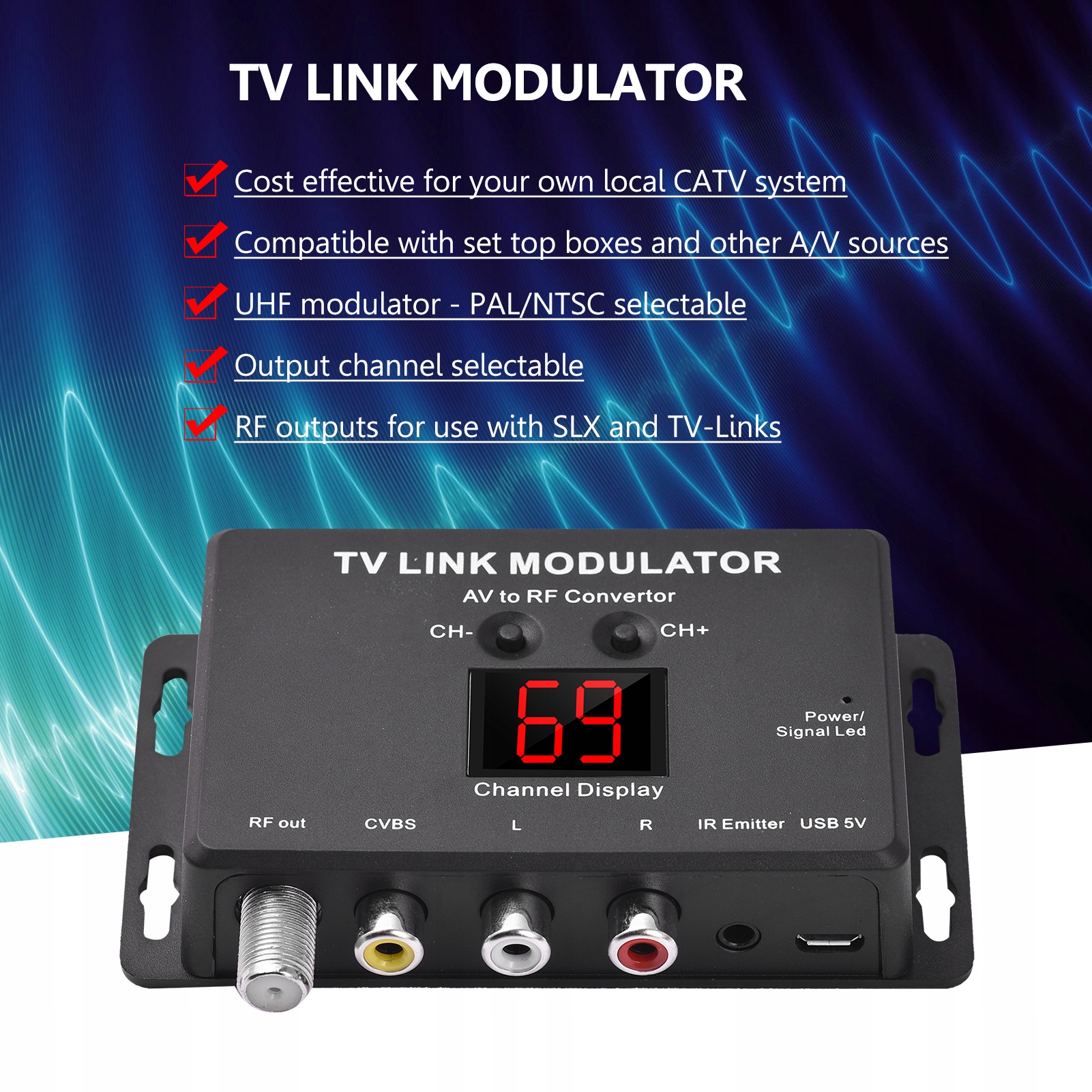

TM80 TV Link Modulator AV do RF Converter fortemo A1

Feature:1. Using existing RF circuit in general homes. Remote control signal and power can be transmitted via RF.

2. Sharing of STB, DVD with a few rooms. At the same time having the function of remote control in the rooms when the STB, DVD, DVR are positioned in the living room.

3. Flexibility in setting TV format such as PAL/NTSC and Sound IF to accommodate users from all part of the world.

4. With wide frequency range, both formats of VHF and UHF can be used. Selectable transmitting frequency and correspondence frequency display and in built memory will minimize and avoid interference.

5. The use of broadcast standard PCB circuit designed enhanced stability and better picture quality further.

6. External setting for NTSC/PAL B/G,I,D/K,L.M/N TV formats for global use.

7. Cost effective for your own local CATV system.

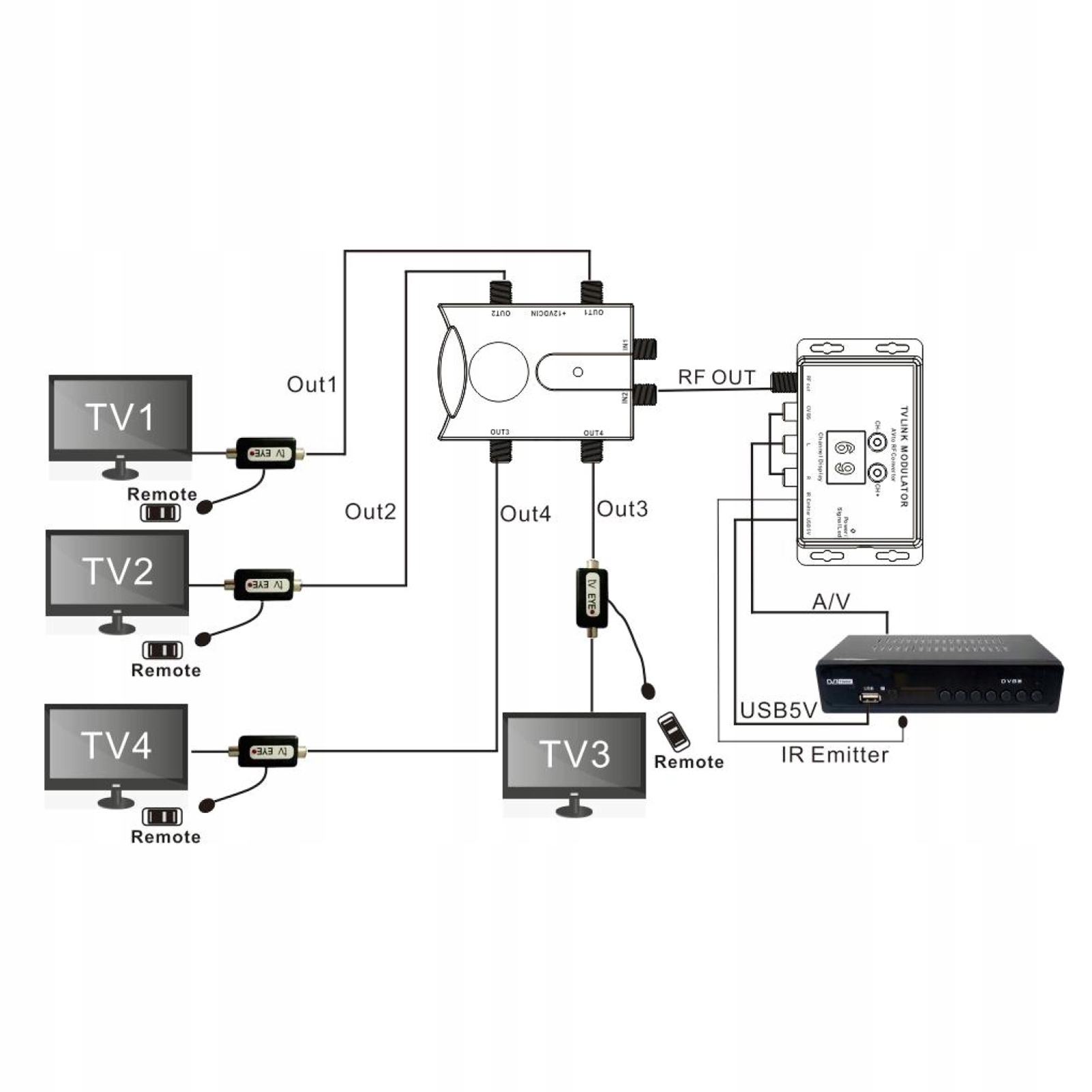

Specification:To modulate Audio/Video/signal to RF signal over coaxial. With this product, user in the room can share and remote control their Digital Set Top Box, DVR, DVD. AV Receiver which are placed in the living room. This is made possible by converting the A/V Signal from the A/V equipment to RF signal and send to various rooms over RF circuits.

Features:

Using existing RF circuit in general homes. Remote control signal and power can be transmitted via RF.

Sharing of STB, DVD with a few rooms. At the same time having the function of remote control in the rooms when the STB, DVD, DVR are positioned in the living room.

Flexibility in setting TV format such as PAL/NTSC and Sound IF to accommodate users from all part of the world.

With wide frequency range, both formats of VHF and UHF can be used. Selectable transmitting frequency and correspondence frequency display and in built memory will minimize and avoid interference.

The use of broadcast standard PCB circuit designed enhanced stability and better picture quality further.

External setting for NTSC/PAL B/G,I,D/K,L.M/N TV formats for global use.

Cost effective for your own local CATV system.

Compatible with Set Top Boxes and other A/V sources.

UHF Modulator - PAL/NTSC Selectable.

Output Channel Selectable.

RF Outputs for use with SLX and TV-Links.

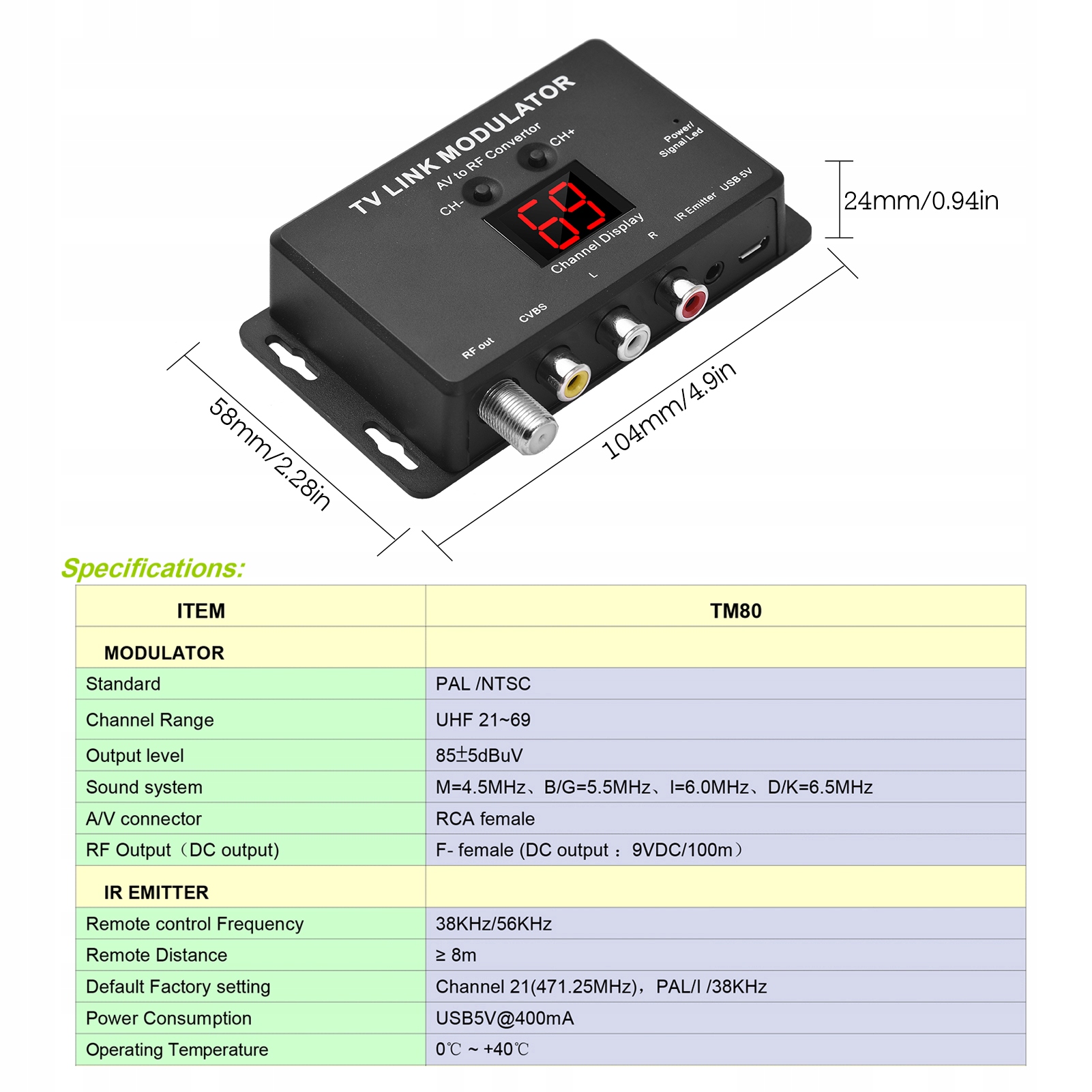

Specifications:

RF Frequency Range: 471.25MHz-885.25MHz

Channel Range: PAL: 21-69ch; NTSC: 14-83ch

Default Factory Setting: Channel 21 (471.25MHz).PAL I, 38KHz

RF Output Impedance: 75Ω unbalanced

Video Input Impedance: 75Ω

TV Format: PAL/NTSC

Sound Carrier Frequency: 4.5 / 5.5 / 6.0 / 6.5MHz

Remote Distance: ≥10m

Transmitter Distance: ≤30cm

Remote Control Frequency: 38/56KHz

Power: USB 5VDC

Power Consumption: ≤1W

Material: ABS

Item Size: 104 * 68 * 24mm / 4.09 * 2.68 * 0.94in

Item Weight: 96g / 3.39oz

Package Weight: 137g / 4.85oz

Package Size: 13.2 * 10.5 * 3.2cm / 5.20 * 4.13 * 1.26in

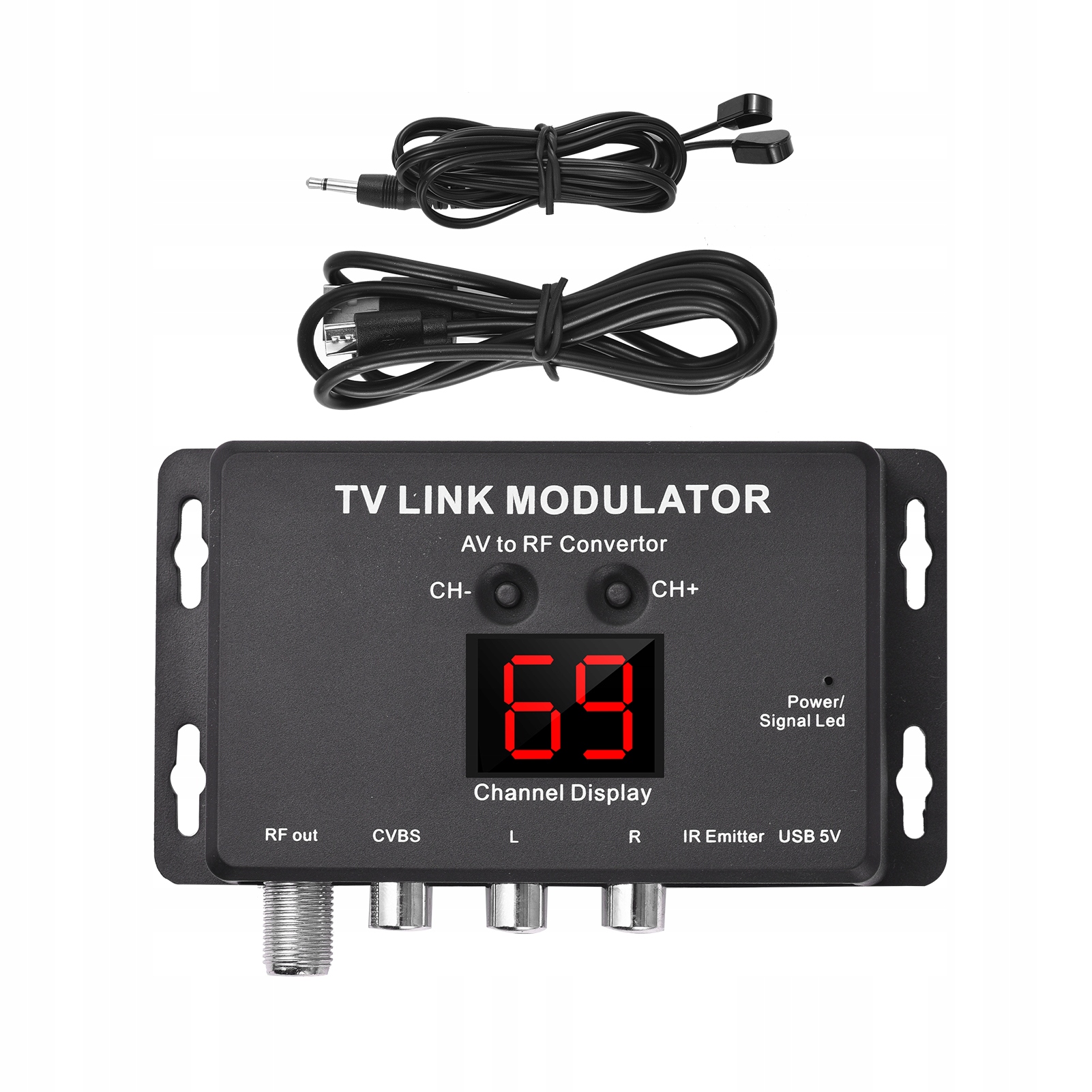

Package List:

1 * TVLINK Modulator

1 * USB Cable

1 * IR Emitter Cable

1 * Manual (English)

Package List:1 * TVLINK Modulator

1 * USB Cable

1 * IR Emitter Cable

1 * Manual (English)
