Magewell Pro Capture Mini HDMI (11110) | Wewnętrzna karta przechwytująca

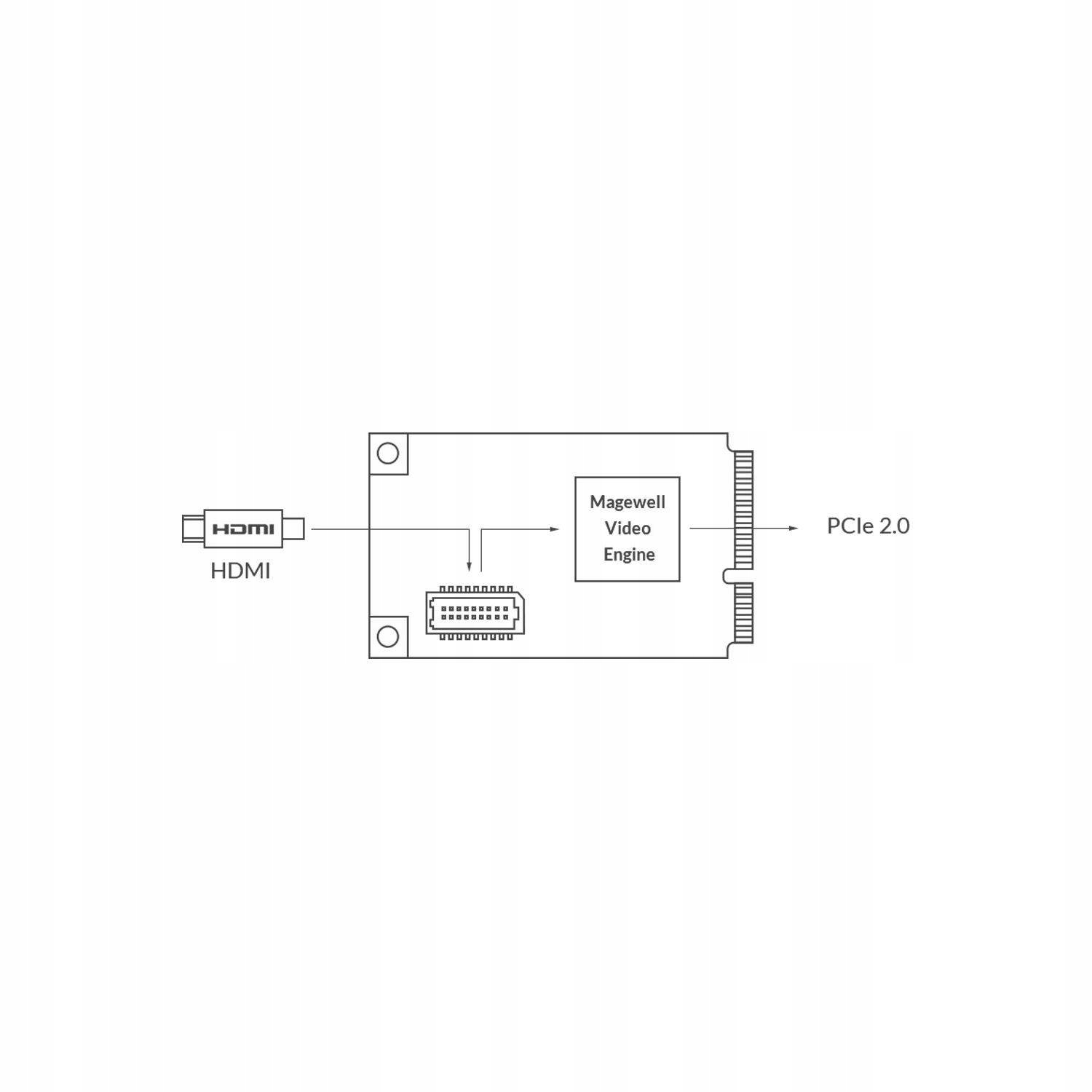

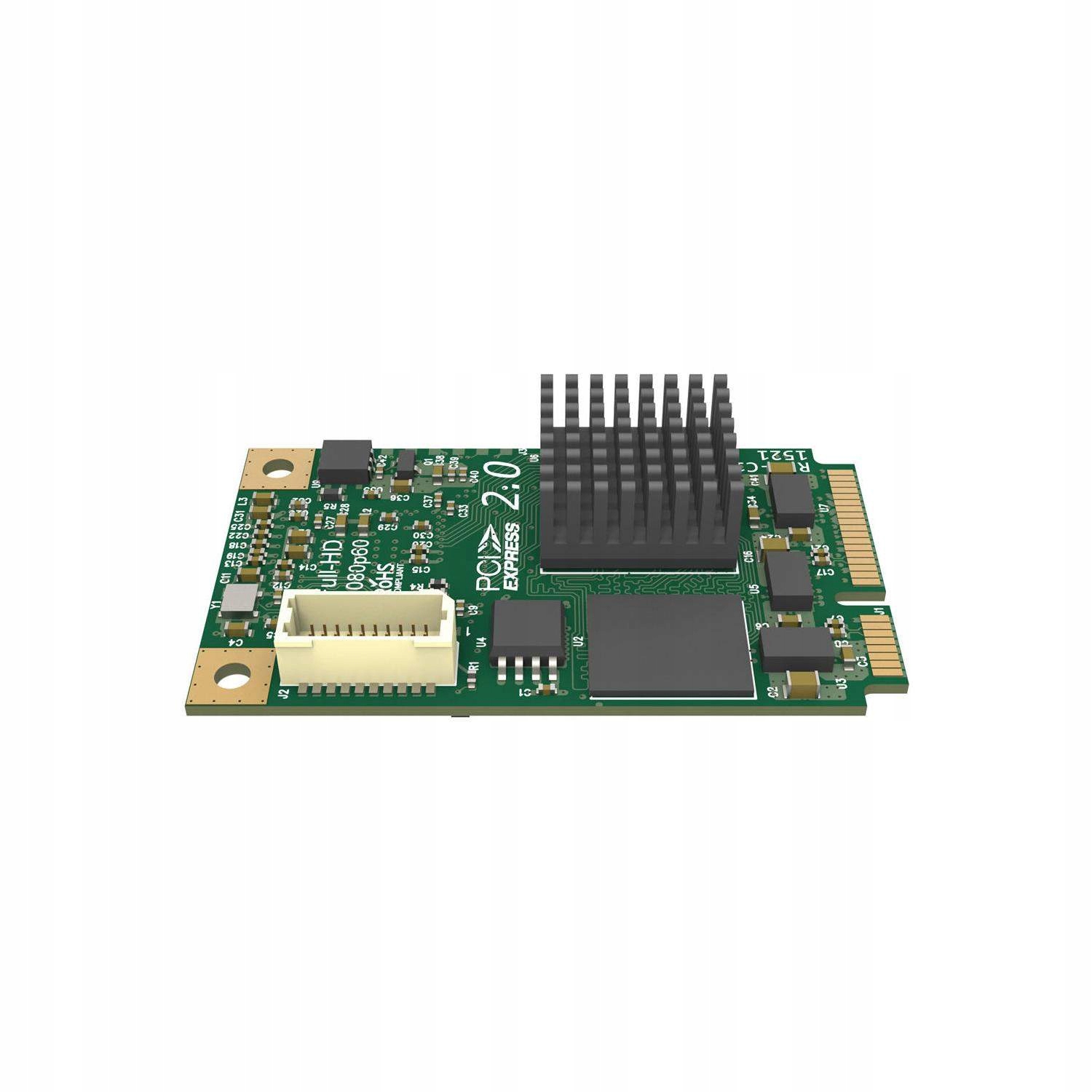

Magewell Pro Capture Mini HDMI (11110) to grabber audio-wideo w zminiaturyzowanej formie, przeznaczony do montażu w gniazdo Mini PCIe Gen2 x1. Model ten pozwala na przechwytywanie jednego kanału wideo z umieszczonym dźwiękiem po złączu HDMI. W zestawie otrzymujemy kabel SHD do HDMI, który pozwoli na wygodne podłączenie urządzenia. Karta obsługuje rozdzielczość do 2048x2160px i współpracuje z systemami Windows, Linux i Mac. Urządzenie posiada wbudowany silnik wideo pozwalający na wiele ciekawych zastosowań w tym crop, deinterlacing, zmianę proporcji obrazu, skalowanie w górę i w dół, zmianę przestrzeni kolorów, ustawienie sprzętowego znacznika czasowego czy korekcję kolorów. Do tego wsparcie Time Code, 3D HDMI oraz autodetekcja formatu sygnału wejściowego.

Magewell Pro Capture Mini HDMI (11110):

• Wejście HDMI 1.4a
• Pozwala na obsługę umieszczonego audio
• Wsparcie do rozdzielczości 2048x2160
• Interfejs Mini PCIe Gen2 x1
• Silnik wideo 10-bit
• Funkcje jak deinterlacing, crop, korekcja kolorów, sprzętowy znacznik czasowy, skalowanie góra/dół czy konwersja proporcji obrazu
• Autodetekcja formatu sygnału wejściowego
• Time Code
• 3D HDMI
• Wsparcie ogromnej ilości oprogramowania
• Niska latencja
• Możliwość podłączenia wielu kart do jednej stacji

Lista sprawdzonego kompatybilnego oprogramowania z serią Magewell Pro Capture:

• Adobe Connect
• Adobe Flash Media Live Encoder
• Amcap
• BlueJeans
• Camtasia Studio
• Cisco Webex Meetings
• DingCaster
• Discord
• Discover Video Multimedia Encoder
• Discover Video Streamsie
• DisplayNote Montage
• ECamm Live
• Elecard Codec Works
• Elecard Multistream player
• Forsite MWCC
• Google Plus Hangouts
• Gotomeeting
• GrandVJ
• Graphedit
• Gstreamer
• Hecoos
• Hirender
• iAVCast
• Kaltura
• Livestream
• Livestrom
• ManyCam
• Medialooks Direct Take
• Meridix Broadcast Producer
• Metus Ingest
• Microsoft Lync
• Microsoft Teams
• mimoLive
• OBS Classic
• OBS Studio
• Panopto
• Polywall
• Presentations 2Go
• Quicktime Player
• Real Producer Plus
• Resolume
• Restream
• Skype
• Skype for business
• Slack
• Streambox
• Streamstar
• UltraGrid
• VidBlasterX
• VideoStitch
• Vidyo
• VirtualDub
• VLC
• vMix
• Watchout
• Windows Media Encoder
• Wirecast
• XSplit Broadcaster
• XSplit Gamecaster
• YCD Multimedia
• Zoom.us
• Każde inne oprogramowanie do przechwytywania i streamingu oparte na DirectShow/V4L2/AVCaptureSession

W zestawie:

• x1 Magewell Pro Capture Mini HDMI (11110)
• x1 SHD to HDMI type A breakout (AC00070)

Specyfikacja Magewell Pro Capture Mini HDMI (11110):

• Supported OS

Windows

Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above

Linux (support x86, x64 & ARM architecture)

Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)

CentOS 6.5/7 (x86 & x64)

Fedora 25/26/27 (x86 & x64)

Red hat 6.5 and above (x86 & x64)

Other Linux OS with kernel version 2.6.35 and above

Mac

OS X 10.9/10.10/10.11

macOS 10.12 and above

• Recommended OS (tested)

Windows

Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)

Linux

Ubuntu 12.04/14.04/16.04 (x86 & x64)

Ubuntu 17.04/17.10/18.04 (x64)

CentOS 6.5/7.2 (x86 & x64)

Fedora 25/26 (x64)

Red hat 6.5 (x86 & x64)

Mac

OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4

macOS 10.12/10.13.2/10.13.3/10.14.3/10.15

• Supported APIs

Windows

DirectShow

DirectKS

Wave API/DirectSound/WASAPI

Linux

V4L2

ALSA

macOS

AVCaptureSession

AudioUnit

• Input Interfaces

JST SHD 20pin connector

DVI 1.0

HDMI 1.4a

• Host Interfaces

PCIe Gen2 x1

• Input Features

Support for input video resolutions up to 2048x2160 pixels

• HDMI Specific Features

225MHz HDMI receiver

Adaptive HDMI equalizer support for cables lengths up to 30M

Support for customized EDID

Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames

Full colorimetry support

Support for 8/10/12-bit color depths

Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling

Support for up to 8-channel IEC60958/IEC61937 audio streams via SDK

Support for extraction of audio formation information & channel status data

Support for extraction of video timing information

Support for extraction of 3D format information

Support for extraction of Sony/Canon DSLR time code

Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.

• Video Capture Formats

Support for capture image resolutions up to 2048x2160 pixels

Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions - above 1280x1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920x1080 = ~80fps. )

Support for 4:2:0 8-bit capture formats: NV12, I420, YV12

Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY

Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32

Support for 4:4:4 10-bit capture formats: V410, Y410

More capture formats are supported via Magewell Capture SDK

• Video Processing Features

Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one

Full 10-bit video processing

Video cropping

Video scaling

Video de-interlacing

Weave

Blend top & bottom field

Top field only

Bottom field only

Video aspect ratio conversion

Auto or manual selection of input aspect ratio

Auto or manual selection of capture aspect ratio

Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

Video color format conversion

Auto or manual selection of input color format & quantization range

Auto or manual selection of capture color format, quantization range & saturation range

Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats

Support for Limited or Full quantization range

Support for Limited, Full & ‘Extended gamut’ saturation range

Video frame rate conversion

Video OSD composition

Support for PNG OSD image (up to 2048x2160)

Support for dynamic loading of RGBA OSD image via SDK

• Multiple Cards per System

Support for multiple cards plugged to one system

• Multiple Capture Streams

Unlimited capture streams for any one input channel

Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream

• Ultra Low Latency Support

Latency of 64 video lines

Partial notification mode in SDK

• Timestamp & A/V Synchronization

Hardware based 100ns high resolution clock

Audio frames (192 audio samples) & video frames are stamped with hardware clock

Hardware clock can be synchronized across cards (via SDK)

• Video Capture SG-DMA

~400MB/s per channel DMA bandwidth in PCIe 2.0 system

~200MB/s per channel DMA bandwidth in PCIe 1.0 system

Support for DirectGMA for AMD video adapter chipsets

Support for GPUDirect for Nvidia video adapter chipsets

• SDK

Magewell Capture SDK for easy integration, maximum flexibility and performance

• Windows Driver Tweaks

All options can be controlled by three levels of registry key: global level, product level and device level

Video, Audio, Crossbar filter names can be customized via registry keys

• Firmware Upgrade

Multiple cards in one system can be upgraded simultaneously

Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)

Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.

• LED Indicator (equiped with REV-C2 and above versions of hardware)

Status LEDs indicate the working state of each channel:

Pulsing slowly: idle

On: input signal locked

Off: input signal unlocked

Double blinks: memory failed or FPGA configuration failed

• Form Factor

Mini PCIe Add-on Card

30mm x 51mm

• Accessories

SHD to HDMI type A breakout

• Power Consumption

High Performance Firmware

Max current at 3.3V: ~ 0.99 A

Max power consumption: ~ 3.24 W

Low Power Consumption Firmware

Max current at 3.3V: ~ 0.83 A

Max power consumption: ~ 2.7 W

• Working Environment

Operating temperature: 0 to 40 deg C

Storage temperature: –20 to 70 deg C

Relative Humidity: 5% to 90% non-condensing
