UNI T UT89XD NVC Cyfrowy multimetr pomiarowy z testem temperatury

Features:

1. This multimeter has professional NCV detection

2. True RMS voltage and current detection, voltage up to 1000V, current up to 20A

3. 100mF large capacitor fast charging measurement

4. UT89X multimeter has temperature measurement, UT89XD multimeter has LED test

5. With flashlight and automatic screen backlight, users can work in a dark environment

Specification:

Condition: 100% Brand New

Optional Style: UT89X, UT89XD

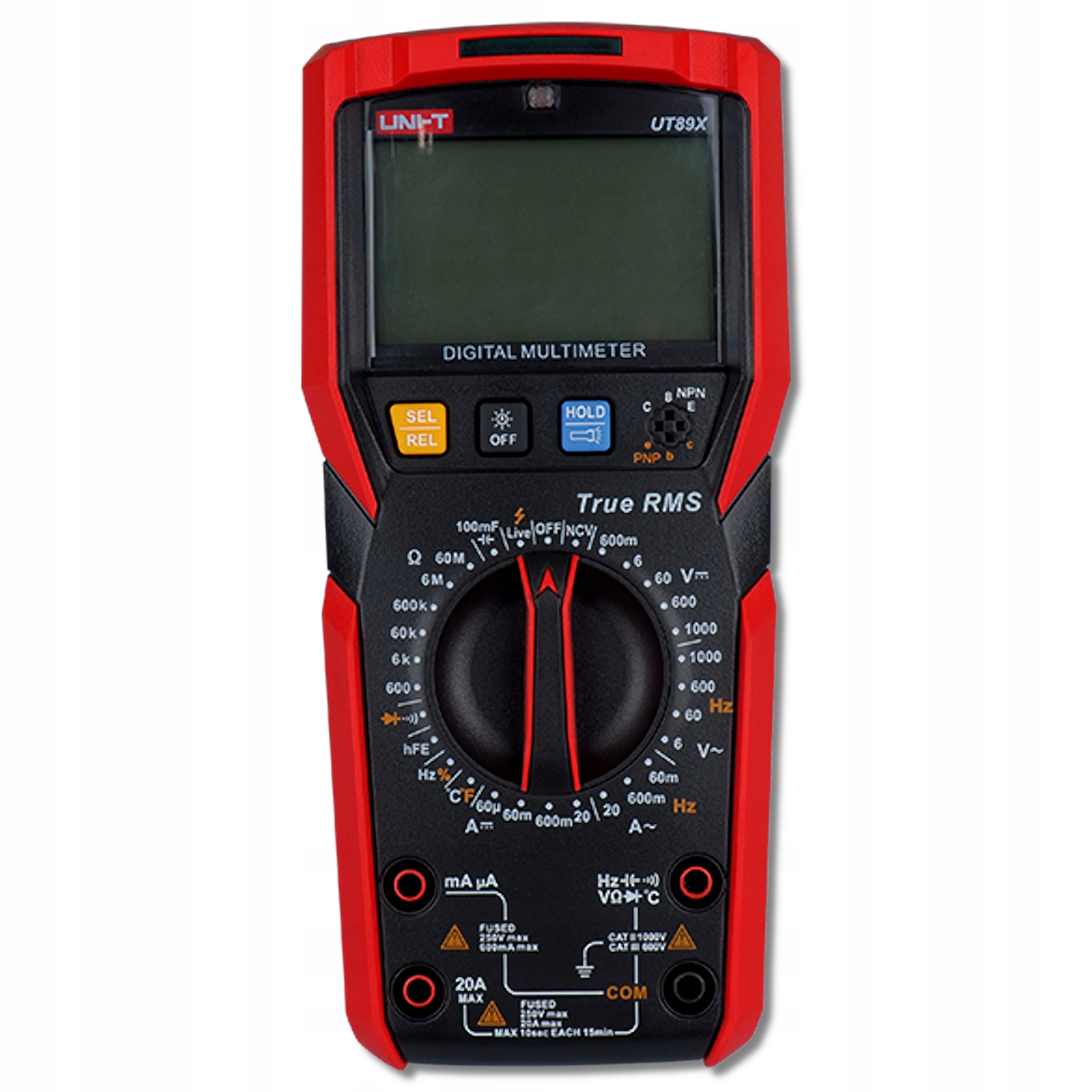

UT89X:

Specifications

Range

UT89X

DC voltage (V)

600mV/6V/60V/600V/1000V

(0.5%+2)

AC voltage (V)

6V/60V/600V/1000V

(0.8%+5)

DC current (A)

60

A/60mA/600mA/20A

(0.8%+8)

AC current (A)

60mA/600mA/20A

(1%+12)

Resistance (

)

600

/6k

/60k

/600k

/6M

/60M

(0.8%+3)

Capacitance (F)

6nF/60nF/600nF/6

F/60

F/600

F/6mF/60mF/100mF

(2.5%+20)

Frequency (Hz)

9.999Hz/9.999MHz

(0.1%+4)

Duty cycle

0.1%~99.9%

(2%+5)

Temperature (

)

-40

~1000

(2%+4)

Temperature (

)

-40

~1832

(2%+8)

Features

Display count

6000

Sampling rate

3 times/s

True RMS

Yes

AC voltage frequency response

45~1000Hz

AC current frequency response

45~1000Hz

Live wire test

Yes

Audible/visual alarm

V/A/Cap/Diode/hFE/NCV/Live (UT89X)/LED (UT89XD)

Diode/Continuity test

Yes

Transistor hFE

Yes

Dual range NCV test

Yes

Auto power off

Yes

Low battery indication

Yes

Data hold

Yes

Function selection

SELECT

Yes

Flashlight

Yes

Auto backlight

Yes

General Characteristics

Power

1.5V battery (R03) x 4(not included)

Display

61mm x 36mm

Product color

Red and grey

Product size

189mm x 89mm x 53mm

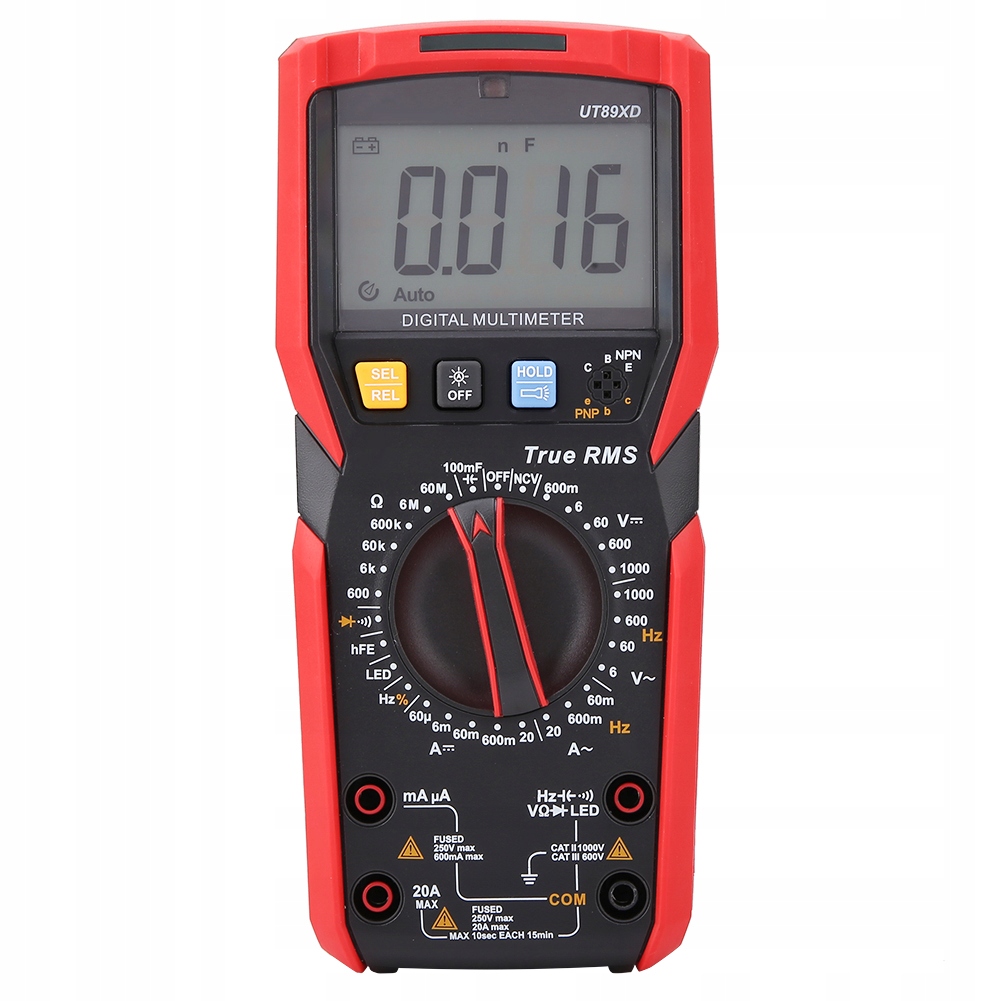

UT89XD:

Specifications

Range

UT89XD

DC voltage (V)

600mV/6V/60V/600V/1000V

(0.5%+2)

AC voltage (V)

6V/60V/600V/1000V

(0.8%+5)

DC current (A)

60

A/6mA/60mA/600mA/20A

(0.8%+8)

AC current (A)

60mA/600mA/20A

(1%+12)

Resistance (

)

600

/6k

/60k

/

600k

/6M

/60M

(0.8%+3)

Capacitance (F)

6nF/60nF/600nF/6

F/60

F/600

F/6mF/60mF/100mF

(2.5%+20)

Frequency (Hz)

9.999Hz/9.999MHz

(0.1%+4)

Duty cycle

0.1%~99.9%

(2%+5)

Features

Display count

6000

Sampling rate

3 times/s

True RMS

Yes

AC voltage frequency response

45~1000Hz

AC current frequency response

45~1000Hz

LED test

Yes

Audible/visual alarm

V/A/Cap/Diode/hFE/NCV/Live (UT89X)/LED (UT89XD)

Diode/Continuity test

Yes

Transistor hFE

Yes

Dual range NCV test

Yes

Auto power off

Yes

Low battery indication

Yes

Data hold

Yes

Function selection

SELECT

Yes

Flashlight

Yes

Auto backlight

Yes

General Characteristics

Power

1.5V battery (R03) x 4(not included)

Display

61mm x 36mm

Product color

Red and grey

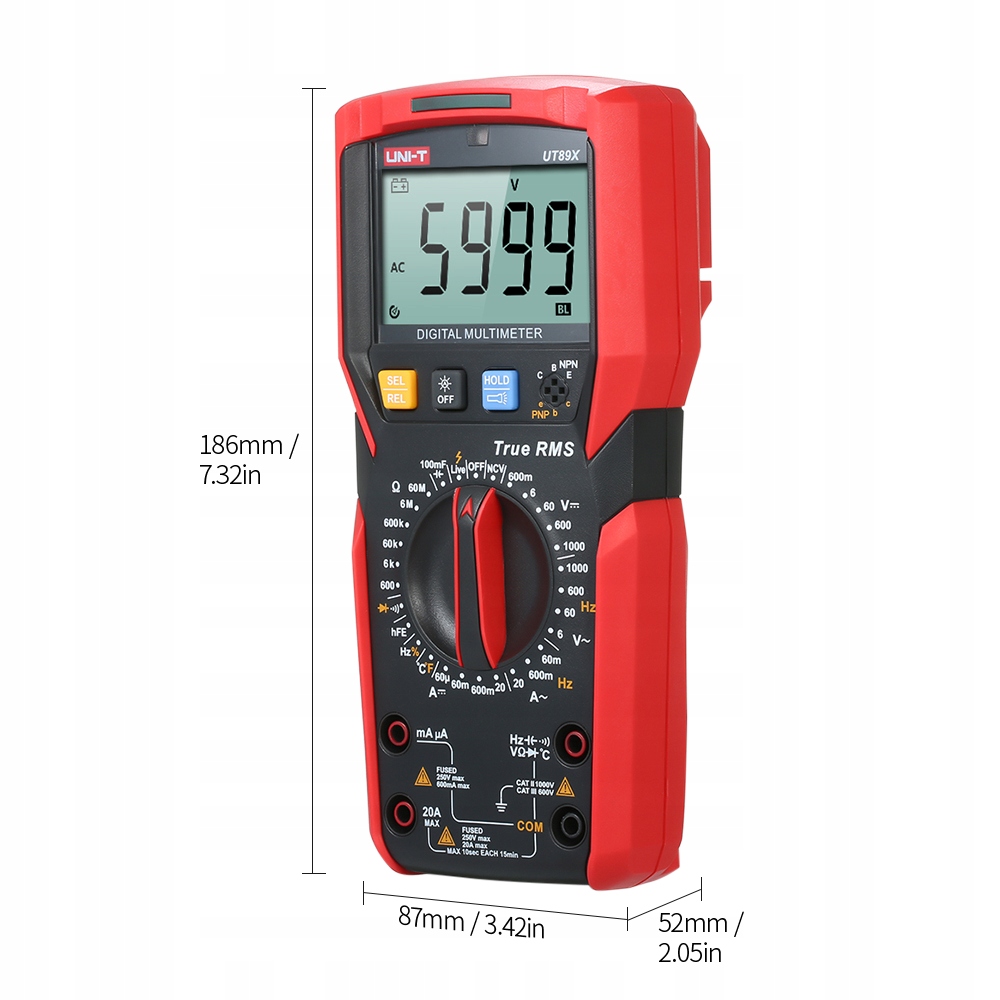

Size: Approx. 189 * 89 * 53mm / 7.4 * 3.5 * 2.1in

Weight: Approx. 523g / 18.4oz

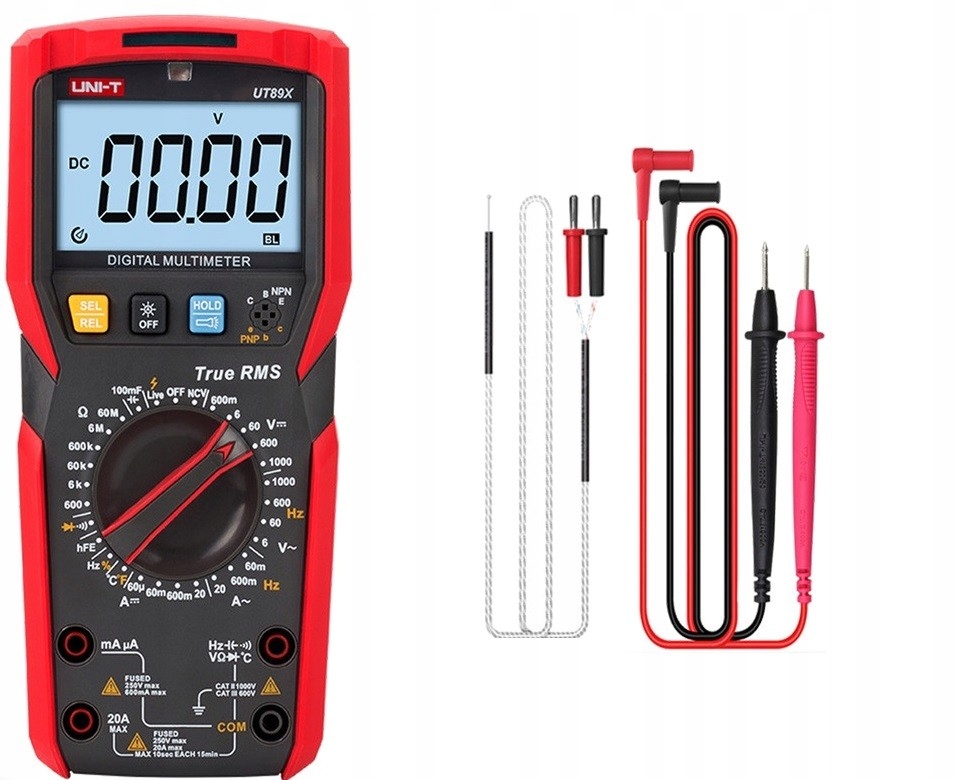

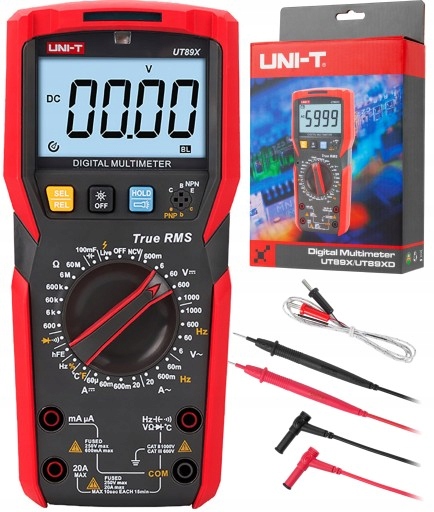

Package List:

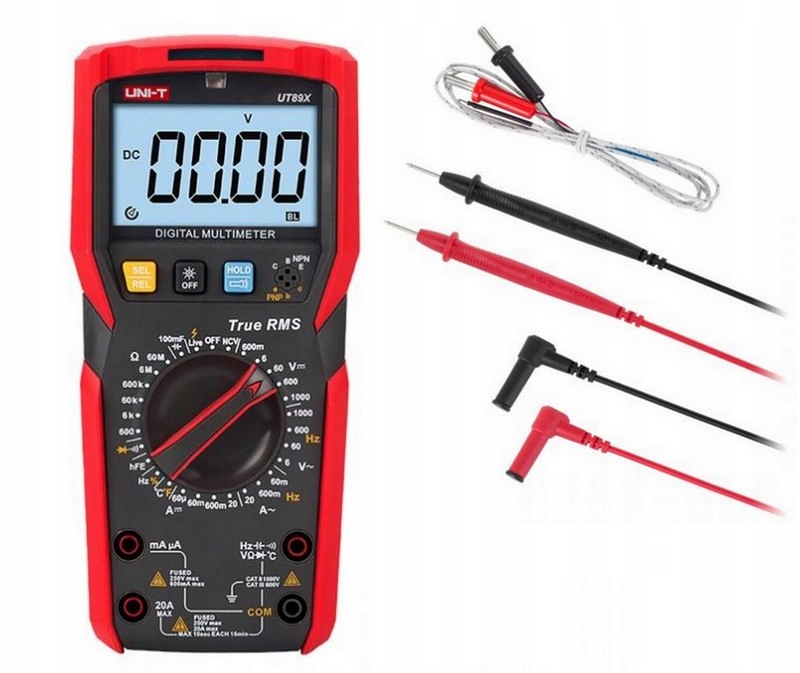

1 * Digital Multimeter

1 * English User Manual

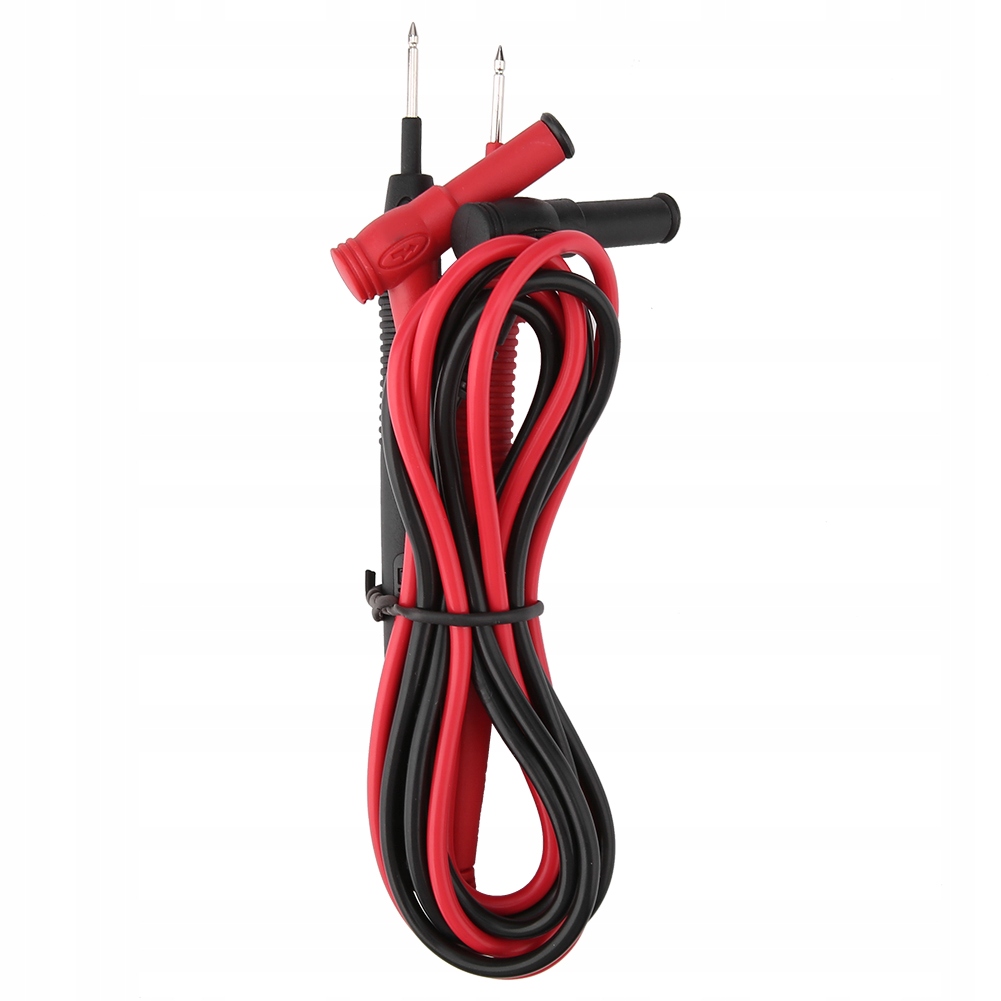

1 * Test Lead(black + red)

1 * K Type Temperature Probe

1 * Colorful Box

Cechy:

1.Ten multimetr posiada profesjonalną detekcję NCV 2.True RMS wykrywa napięcie i prąd, napięcie do 1000V, prąd do 20A Pomiar szybkiego ładowania dużego kondensatora 3.100mF 4.Multimetr UT89X posiada pomiar temperatury, multimetr UT89XD posiada test LED 5 .Dzięki latarce i automatycznemu podświetleniu ekranu użytkownicy mogą pracować w ciemnym otoczeniu
