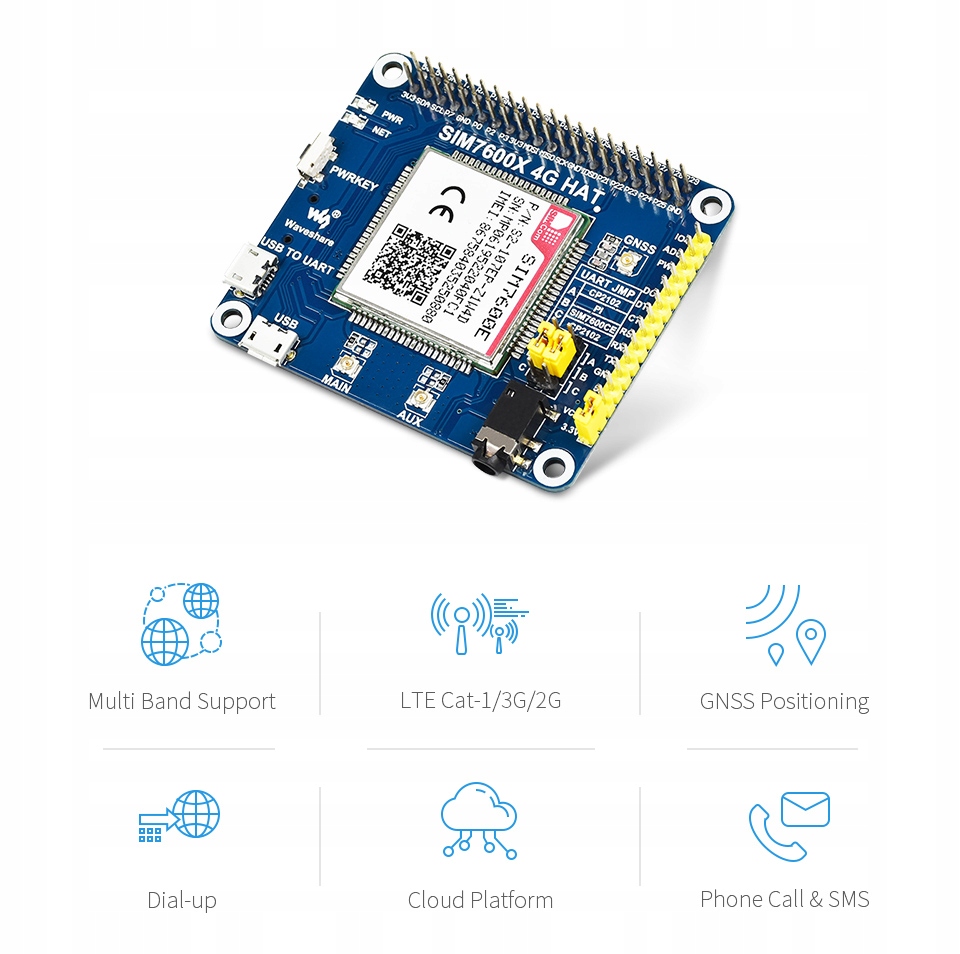

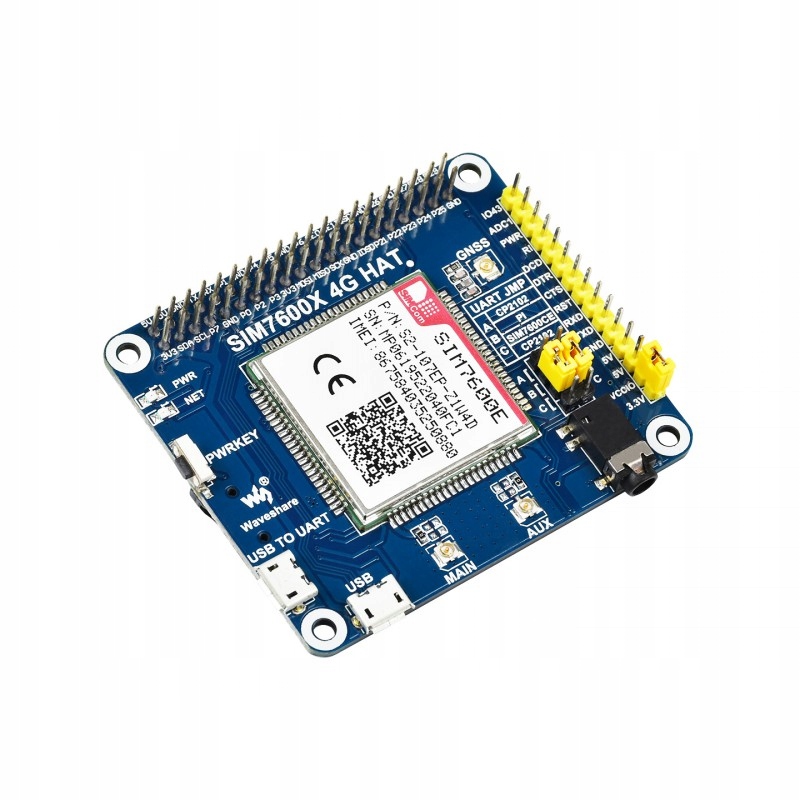

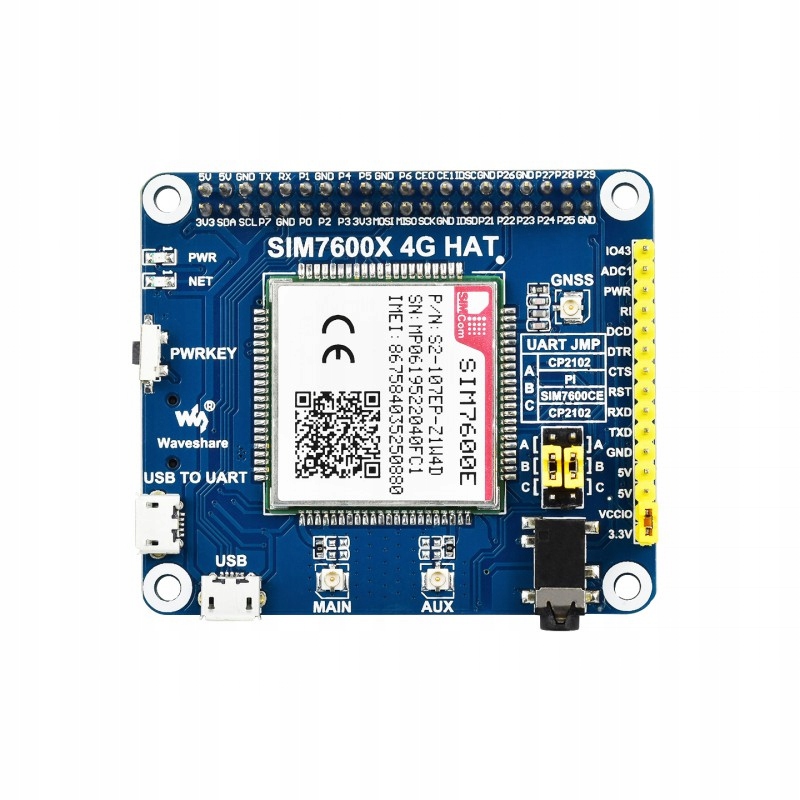

LTE CAT-1 HAT FOR RASPBERRY PI

Enabling LTE Cat-1/3G/2G Communication & GNSS Positioning

Based on SIM7600E

Dodatkowe informacje: http://www.waveshare.com/wiki/SIM7600E_LTE_Cat-1_HAT

• Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
• Supports GPS, BeiDou, Glonass, LBS base station positioning

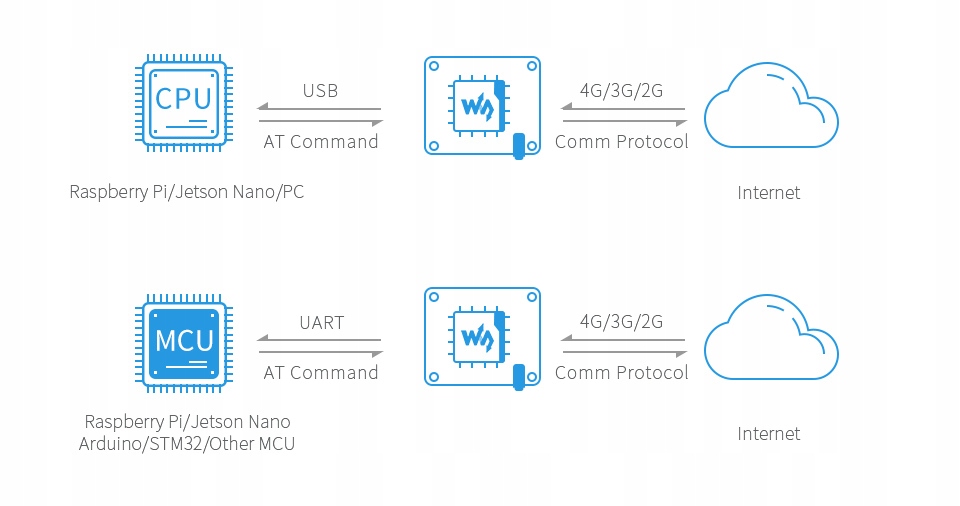

• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
• Onboard CP2102 USB to UART converter, for serial debugging
• Breakout UART control pins, to connect with host boards like Arduino/STM32

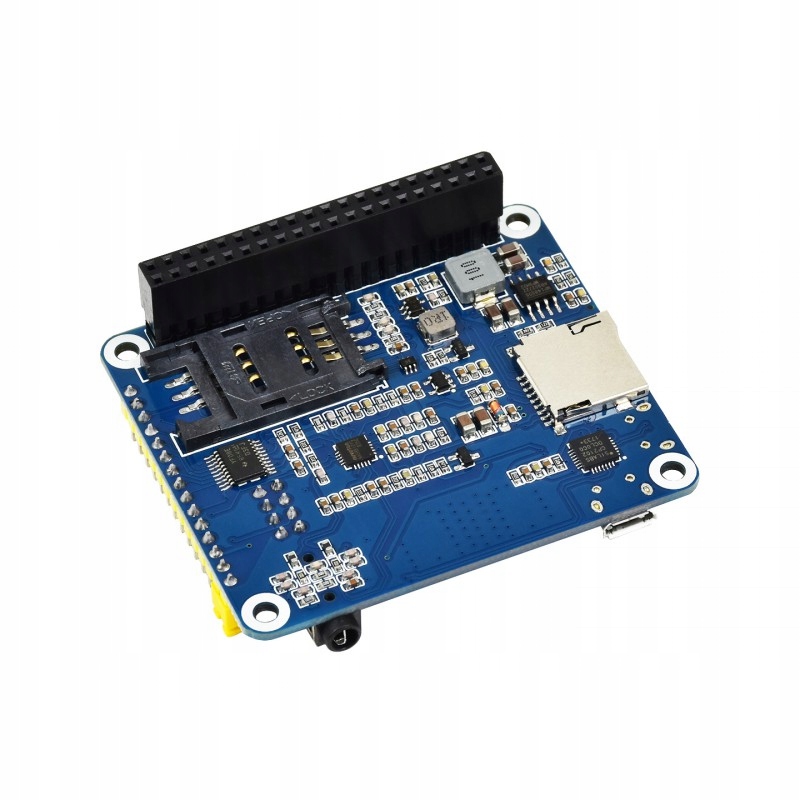

• SIM card slot, supports 1.8V/3V SIM card
• TF card slot for storing data like files, messages, etc.
• Onboard audio jack and audio decoder for making telephone call
• 2x LED indicators, easy to monitor the working status
• Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
• Baudrate: 300bps ~ 4Mbps (default: 115200bps)
• Autobauding baudrate: 9600bps ~ 115200bps
• Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
• Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT

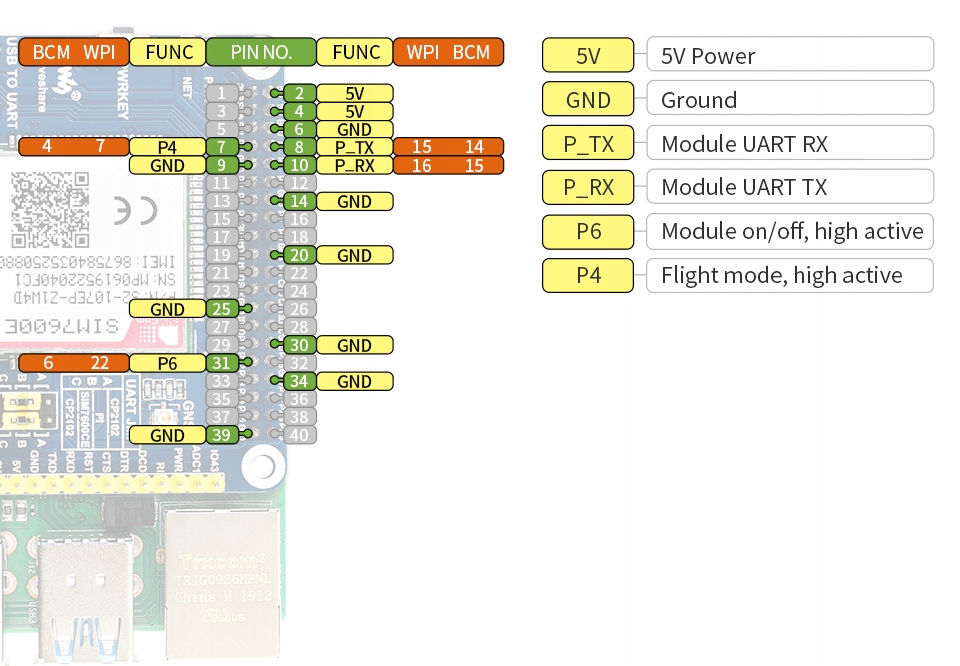

Standard Raspberry Pi 40PIN GPIO

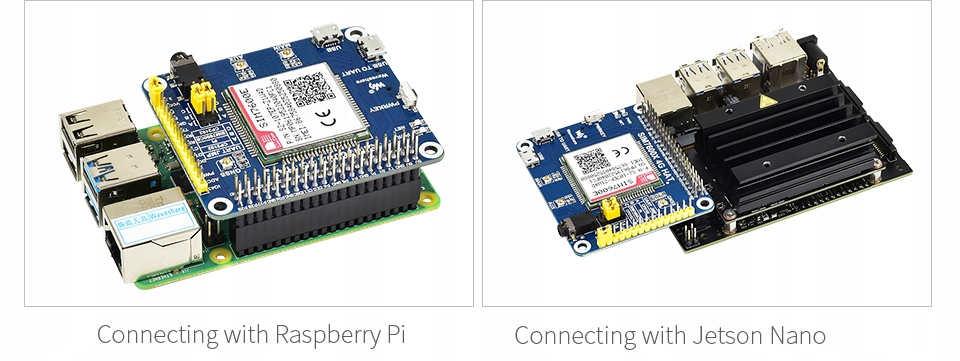

Compatible With Raspberry Pi Series Boards, Jetson Nano

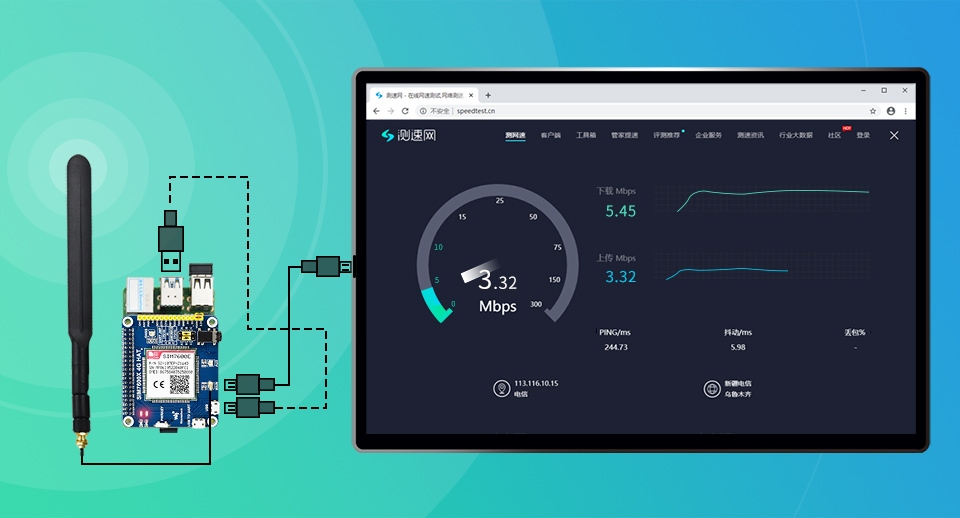

Dial-Up On Windows/Linux

• LTE Cat-1: Up To 5Mbps (Uplink) / Up To 10Mbps (Downlink) *
• 3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *

Cloud Communication

Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS

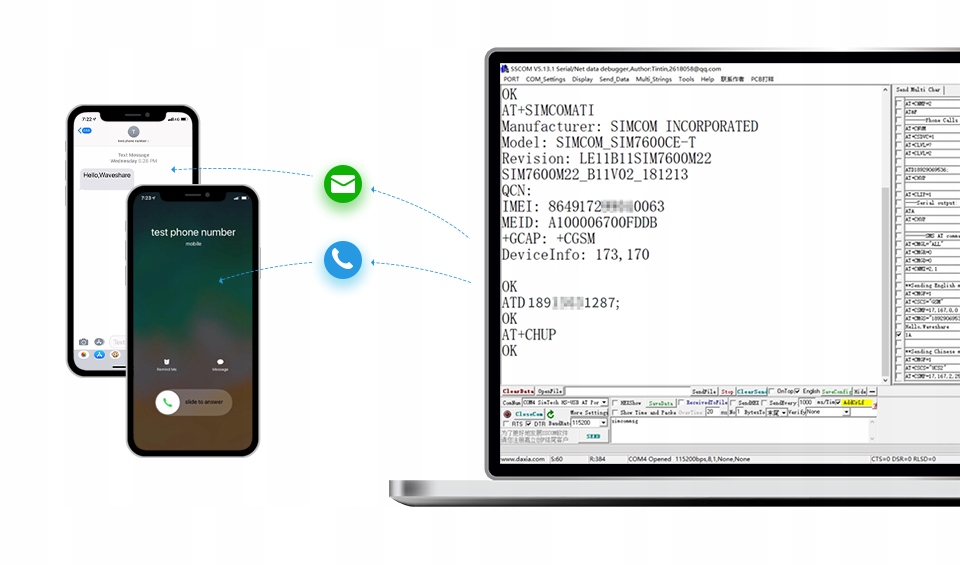

Telephoto Call & SMS Support

Making Telephoto Call Or Sending SMS By AT Commands, With Onboard Audio Jack

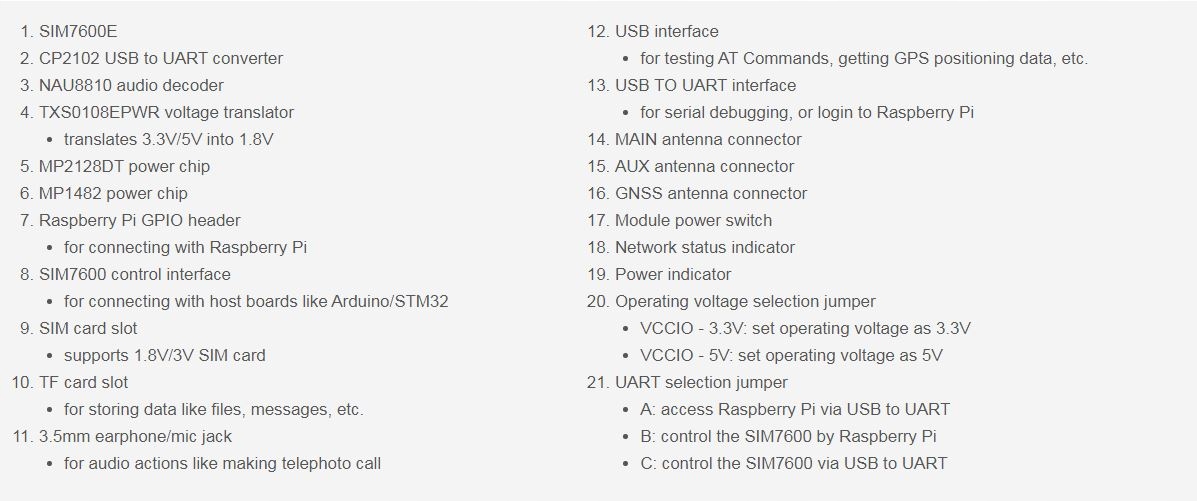

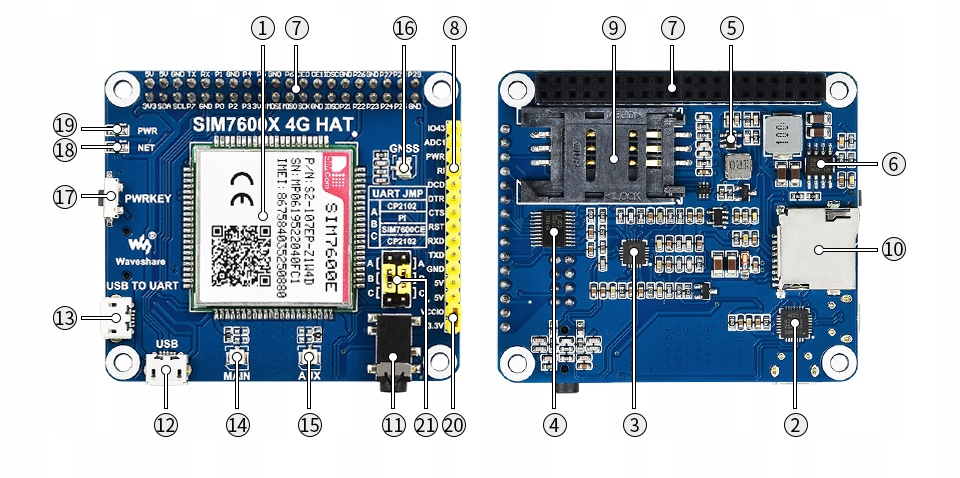

What's On Board

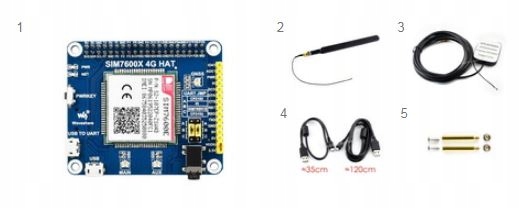

W zestawie:

1. SIM7600E LTE Cat-1 HAT x1

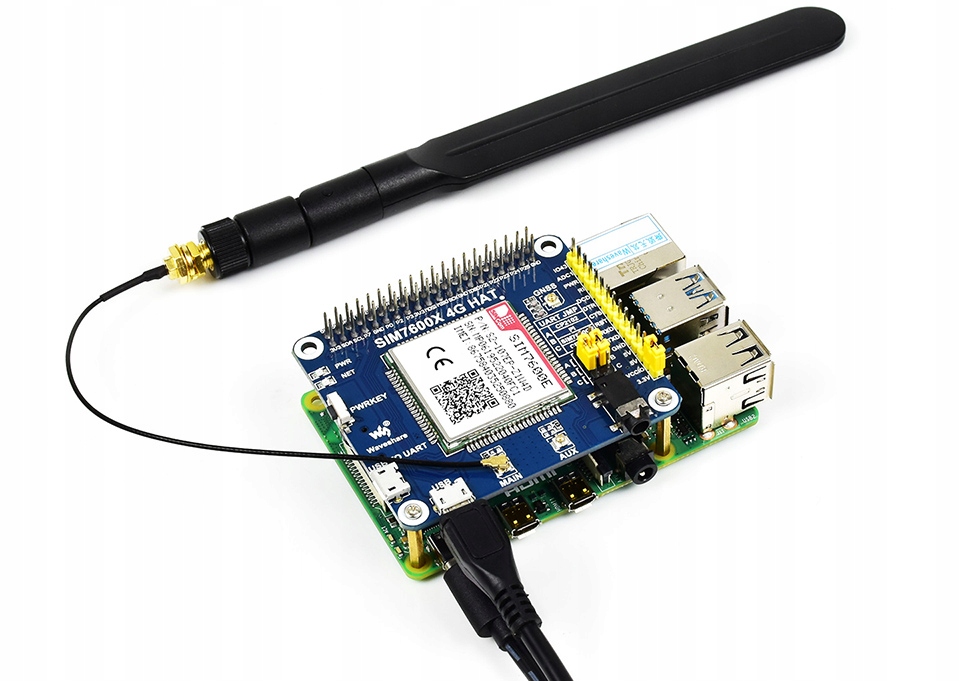

2. LTE Antenna x1
3. GPS External Antenna (B) x1
4. USB-A to Micro-B cable x2
5. RPi screws pack (2pcs) x1
