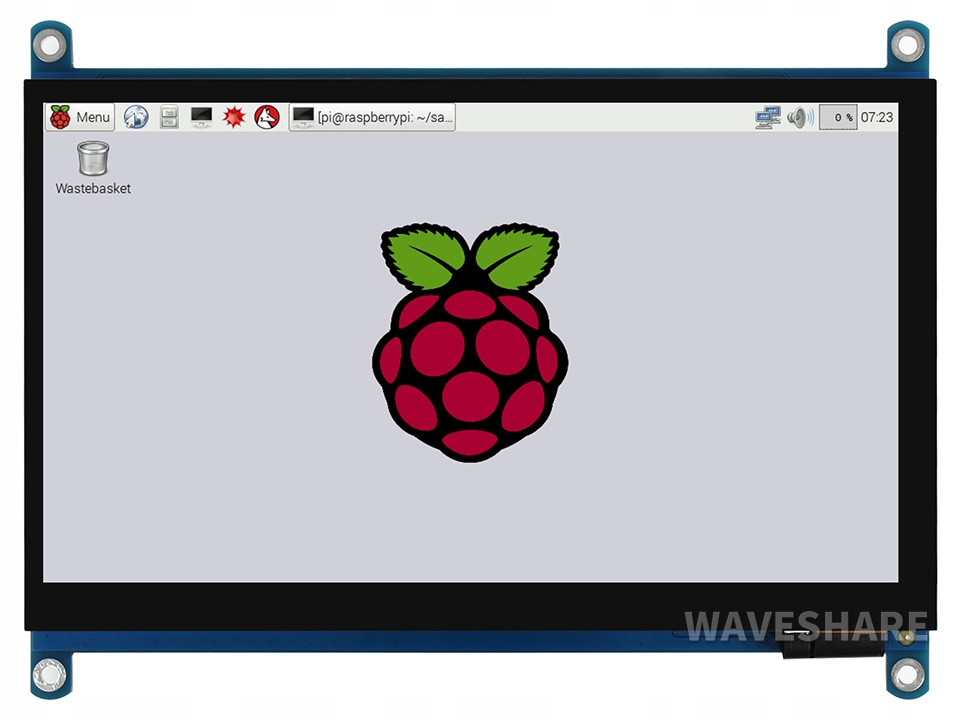

7" QLED Quantum Dot Display

• 7-дюймовый QLED quantum dot display， wider color gamut. pure chroma and longer lifetime.
• 1024x600 hardware resolution, support software resolution (up to 1920x1080)
• Toughened glass capacitive touch panel, 6H hardness. (case version only)
• Support Jetson Nano Developer Kit, driver free
• Used with Raspberry Pi, supports Raspbian, Ubuntu, WIN 10 IoT, driver free.
• Support popular Game Consoles like Xbox360, PS4 and SWITCH.
• Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.
• It has a 3.5 mm audio jack and supports HDMI audio output

Дополнительная информация: https://www.waveshare.com/wiki/7HP-CAPQLED

QLED Панель

QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: NTSC 78%, SRGB 92%

More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

Longer Lifetime

Due To Its Inorganic Характеристика, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

1. ЖК-ФФС cable анти-помехам design, more stable for industrial application
2. VCOM voltage adjustment for optimizing display effect
3. USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
4. 4~5.5 V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage
5. Low dropout ideal diode isolation, when both the more power capability will be used as power supply. The two power inputs are totally isolated это prevent any breakdown
6. Two audio outputs for earphone and speaker, each track of speaker supports 2.6 В ПА circuit
7. OSD меню config buttons for adjusting backlight (via software) and display color
8. DC-DC LCD driver circuit, low heating on long term operation

В комплекте:

1. 7HP-CAPQLED x1
2. HDMI cable x1
3. HDMI to Micro HDMI Adapter x1
4. USB type A plug to micro B plug cable x1
5. RPi screws pack (4pcs) x 1
