Ethernet / USB HUB HAT dla Raspberry Pi, 1x RJ45, 3x USB

This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.

It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.

• 3x USB ports, compatible with USB2.0/1.1
• 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
• Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port

Dodatkowe informacje: Wiki : www.waveshare.com/wiki/ETH/USB_HUB_HAT

1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
2. USB extended ports: USB1~USB3
3. RJ45 port: 10/100M Ethernet interface
4. USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port

   Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector

   Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable

5. TS8121A: Ethernet wave filter
6. RTL8152B: 10/100M Ethernet chip
7. FE1.1S: USB HUB chip
8. LED indicators:

   PWR: power indicator

   ACT: Ethernet indicator

   D1~D3: dedicated indicator for USB1~USB3 respectively

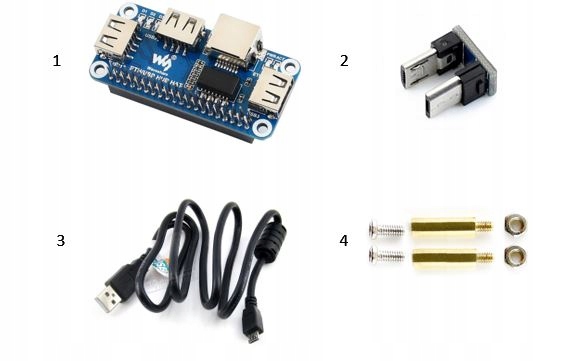

W zestawie:

1. ETH/USB HUB HAT x1
2. Micro USB connector x1
3. Micro USB cable x1
4. RPi screws pack (2pcs) x1

Przykład połączenia modułu z Raspberry Pi ( moduł RPi, nie jest przedmiotem taj aukcji)
