Uninterruptible Power Supply For Raspberry Pi

• Power Your Pi Seamlessly From Power Connection OR The Backup Batteries
• 5A high current, pogo pins connector

Zasilacz awaryjny UPS w postaci nakładki do Raspberry Pi, która doprowadza dodatkowe zasilanie do modułu w przypadku braku prądu lub podczas podróży. Zasilana jest za pomocą dwóch akumulatorów Li-Ion 18650. Posiada dodatkowy przycisk zasilania ON/OFF oraz port USB typu A. Zestaw zawiera zasilacz.

• Designed for Raspberry Pi series, compatible with Raspberry Pi 3 / 3B+ / 4B, etc.
• I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
• Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
• Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi
• 5V USB output, convenient for powering other boards
• Batteries warning indicators, easy to check if the battery is connected correctly
• Comes with development resources and manual

Pogo Pins Connector

Powering The Raspberry Pi Via Pogo Pins, Without Using Any GPIO Resource,

Compatible With Raspberry Pi 3 / 3B+ / 4B, Etc.

Safe And Stable Circuit Design

Protection Circuits For Over Charge/Discharge, Over Current, Short Circuit, And Reverse

Along With The Equalizing Charge Feature, More Safe And Stable

Battery Warning Indicators

Easy To Check If The Battery Is Connected Correctly

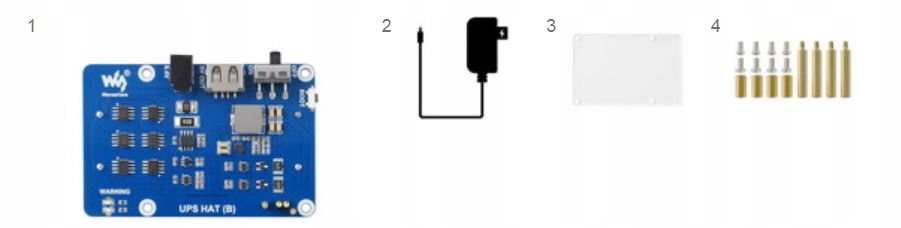

W zestawie:

1. UPS HAT (B) x1
2. 8.4V battery charger x1
3. Acrylic protection panel x1
4. Screws pack x1

Akumulatory 18650 nie wchodzą w skład sprzedawanego zestawu.

Długość akumulatra nie powinna przekraczać 67mm.

The 18650 batteries are NOT included

Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported,
