Конвертер RS232 / RS485 / RS422 в Ethernet Poe

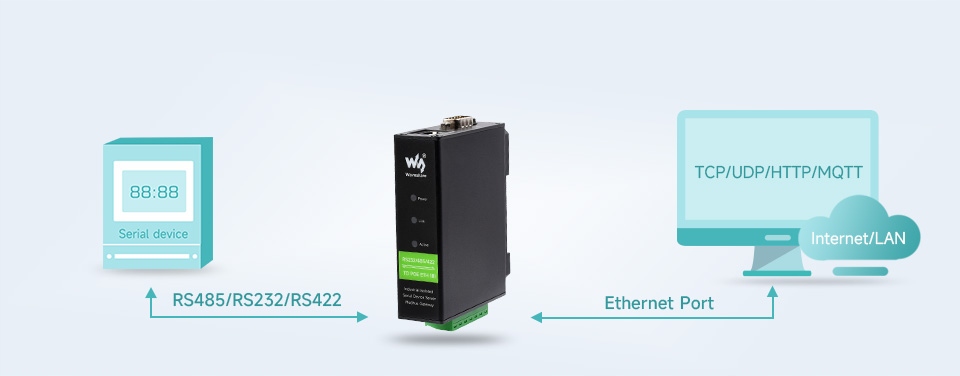

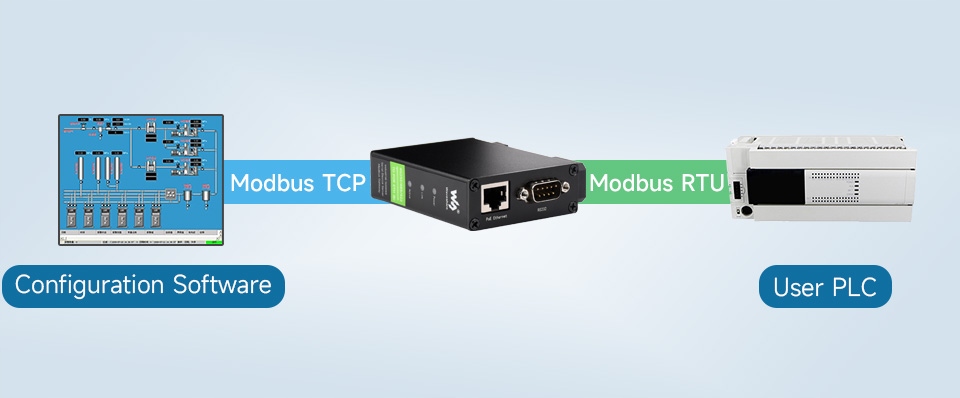

This is an RS232/485/422 device data acquisitor/IoT gateway designed for an industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232/485/422 to JSON, etc. Adopting RS232/485/422 and Ethernet interface with PoE function, it can be connected with screw terminals for power input by the power port (outer diameter: 5.5mm, inner diameter: 2.1mm). The rail-type case design, is small in size, easy to install, and cost-effective. It is very suitable for collecting the data of RS232/485/422 and sensors in the industrial field, including local network collection or uploading to the data that the cloud server autonomously collects and sends.

Дополнительная информация на сайте www.waveshare.com/wiki/RS232/485/422_TO_POE_ETH_(B)

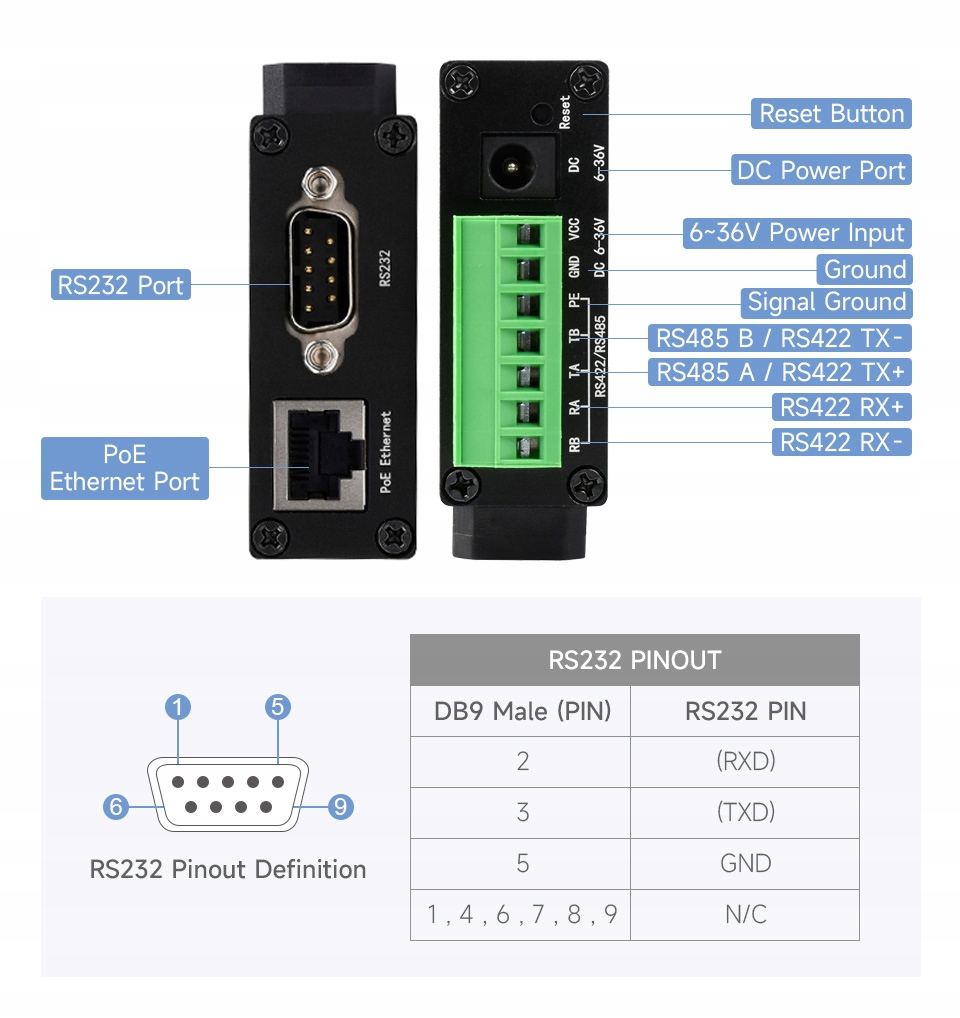

Three Different Interfaces

Onboard RS232 / 485 / 422 Interfaces, Suitable For More Application Scenarios

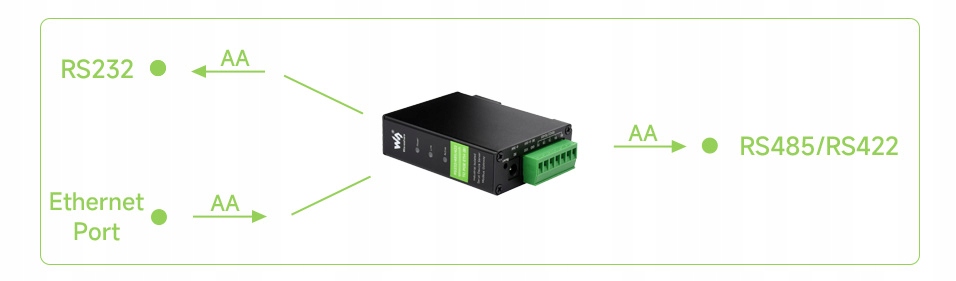

Ethernet Port To RS232/485/422

The Ethernet Port Can Send Data To Three Serial Ports At The Same Time

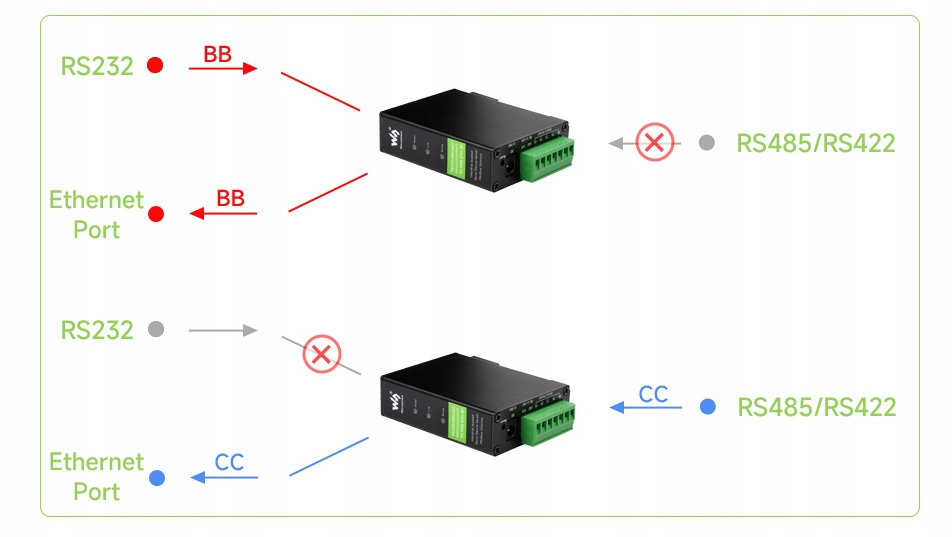

RS232 / 485 / 422 To Ethernet Port

Only One Of The RS232, RS485, And RS422 Can Send Data To The Ethernet Port At The Same Time

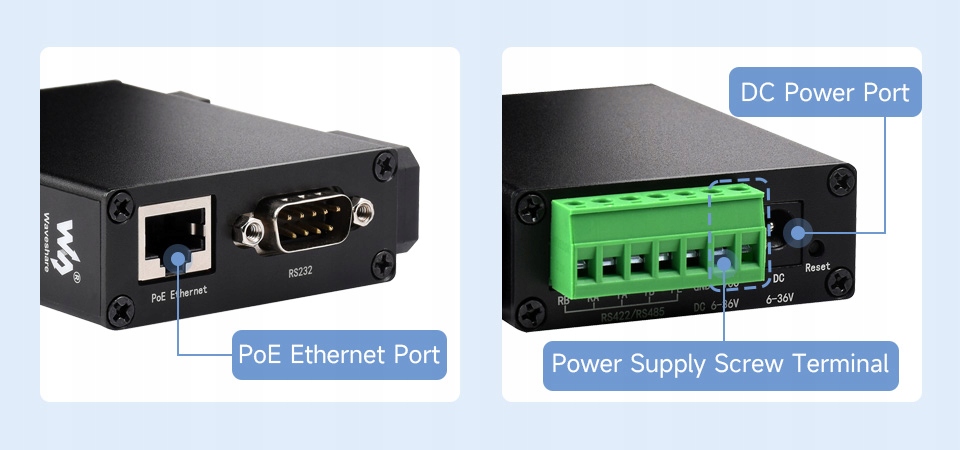

Three Methods For Power Supply

Support PoE Ethernet Port Power Supply, Suitable For IEEE 802.3af PoE Standard

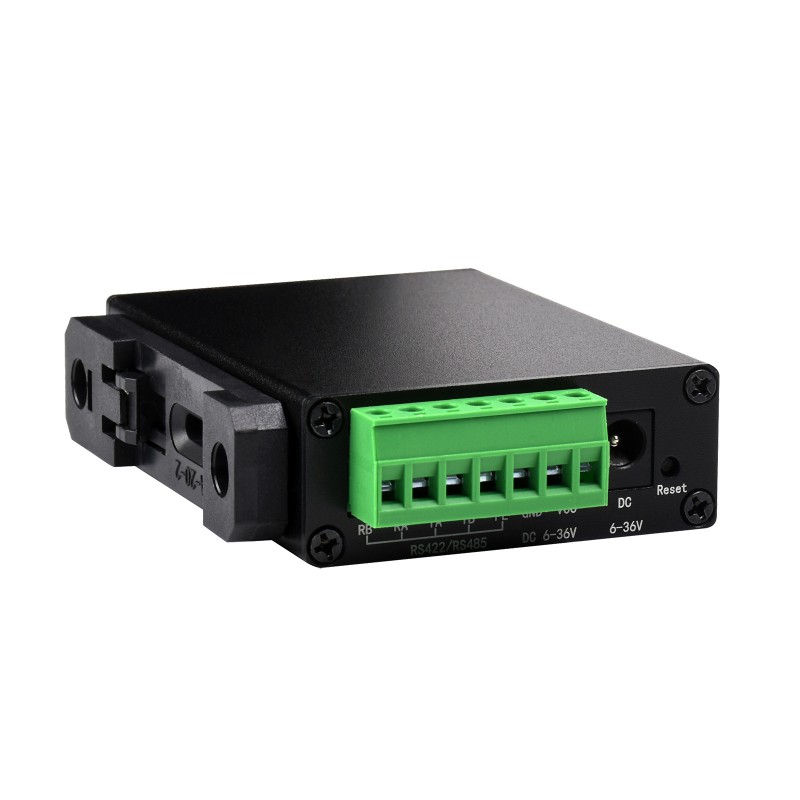

Support Screw Terminal And DC Power Port For Power Supply, DC 6~36V Wide Voltage Range Input

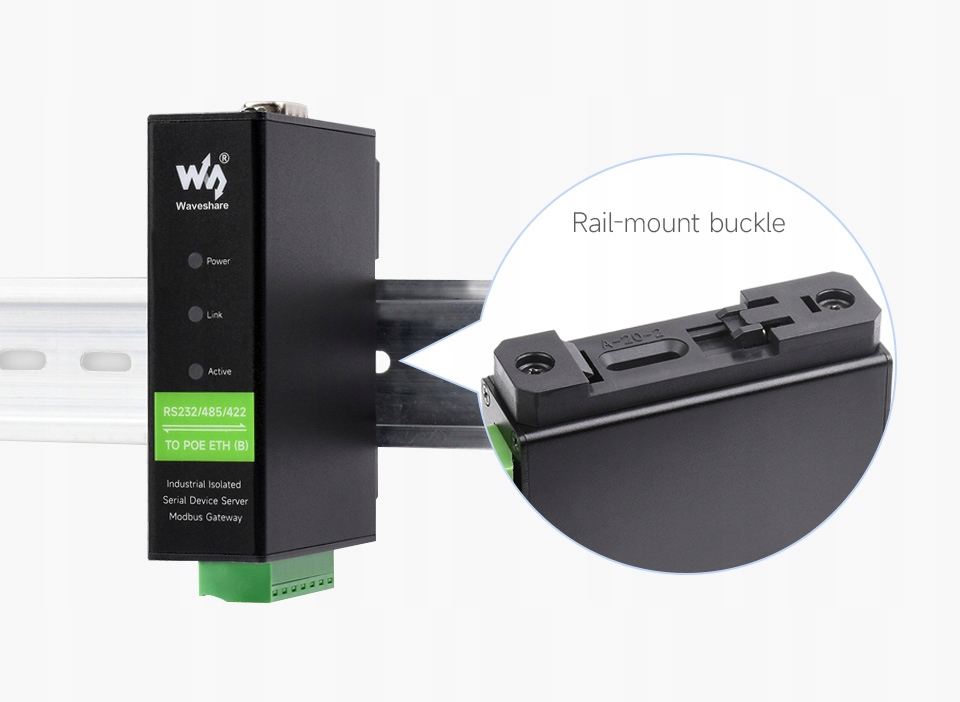

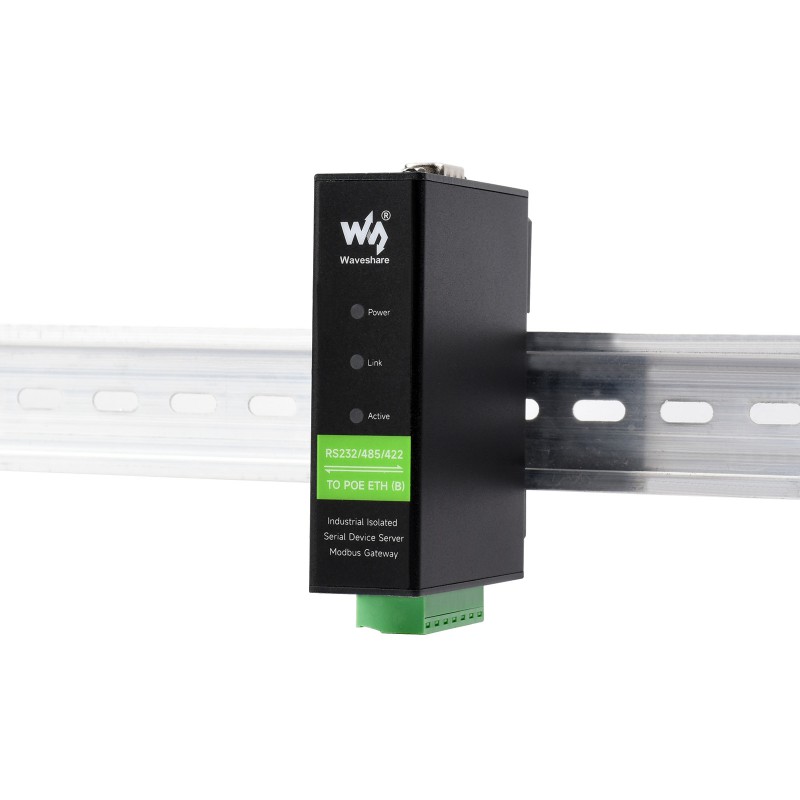

Rail-Mount Support

Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely

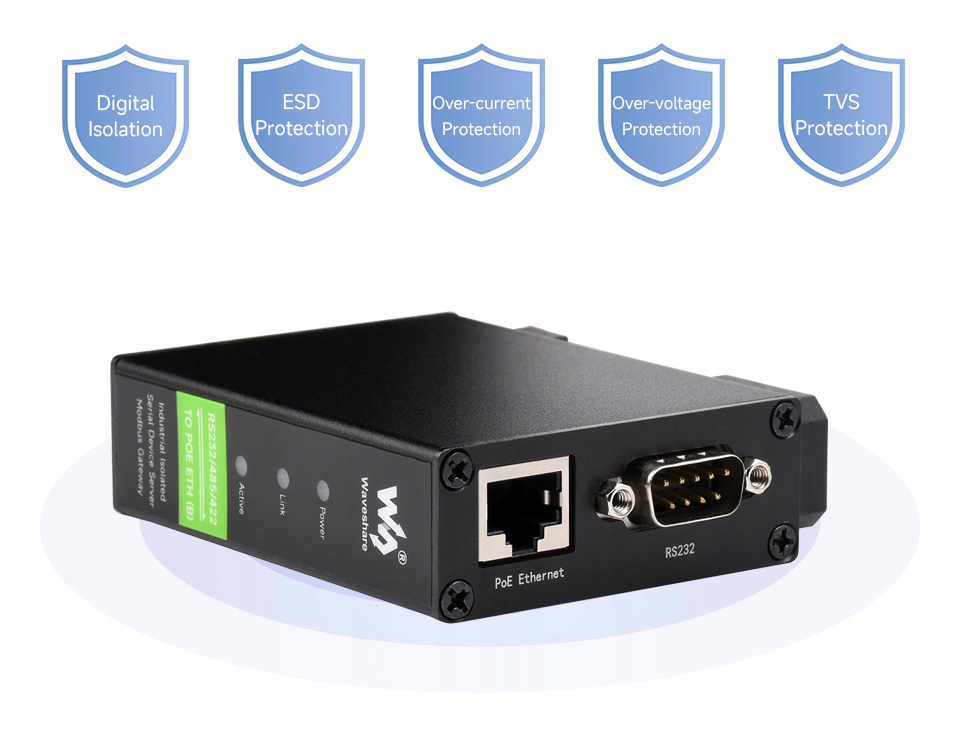

Multiple Protection, Safe And Stable

Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock resistance

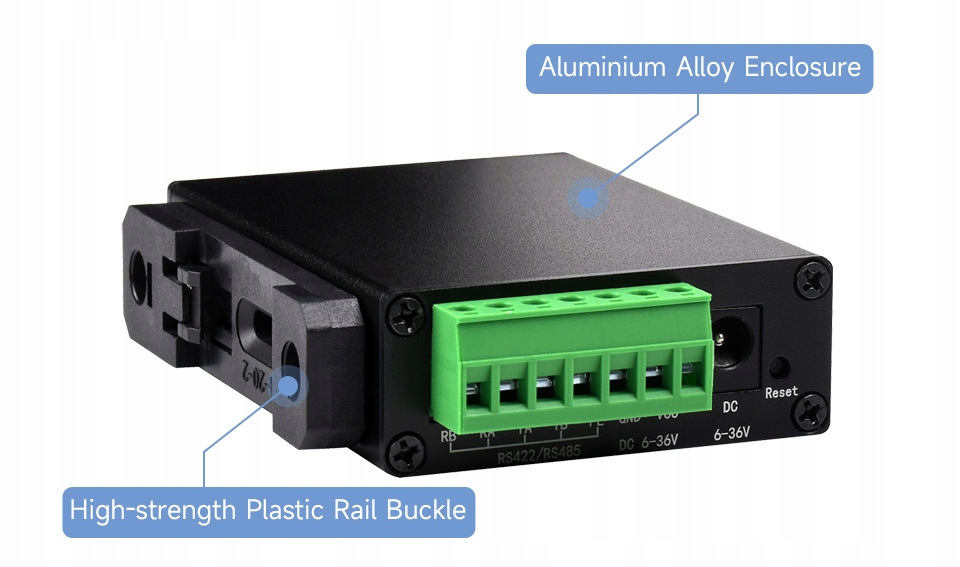

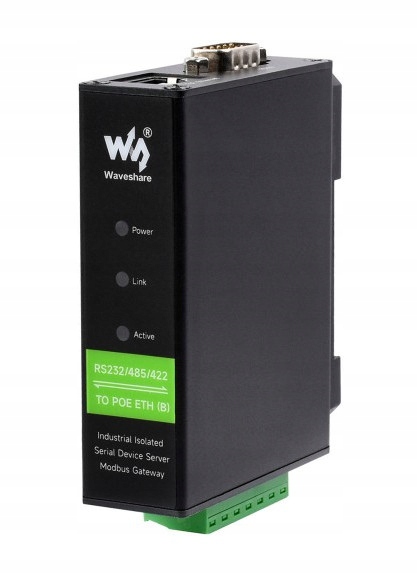

Aluminium Alloy Enclosure

Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation

Solid And Durable, Fashion And Good Hand Feeling
